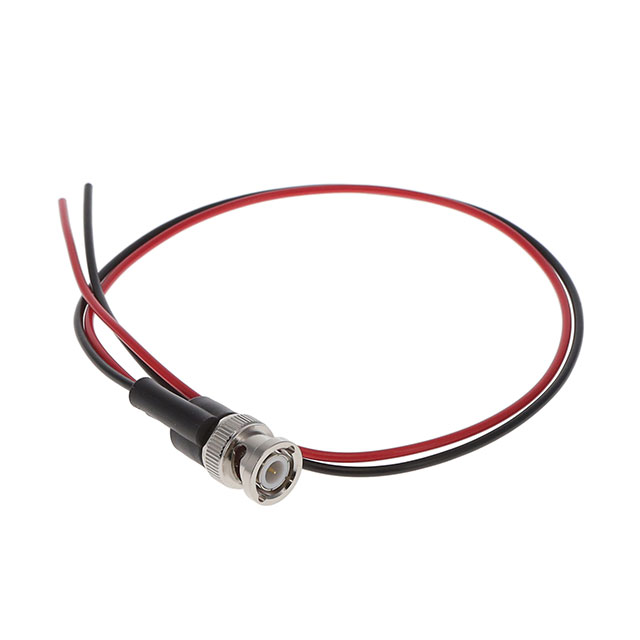

4970-18
ActivePomona Electronics
TEST LEADS BNC (M), 20AWG LEADS MTO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4970-18
ActivePomona Electronics
TEST LEADS BNC (M), 20AWG LEADS MTO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4970-18 |
|---|---|
| 1st Connector | BNC, Male Plug |
| 2nd Connector | Wire Lead |
| Cable Length | 457.2 mm |
| Cable Length | 18 in |
| Configuration | BNC to Wire Leads |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Temperature Range | 55 °C |
| Temperature Range | 131 °F |
| Voltage - Rated | 500 VAC |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.84 | |
Description
General part information
4970 Series
18.0" (457.20mm) BNC, Male Plug To Wire Lead Test Lead 500VAC
Documents
Technical documentation and resources
