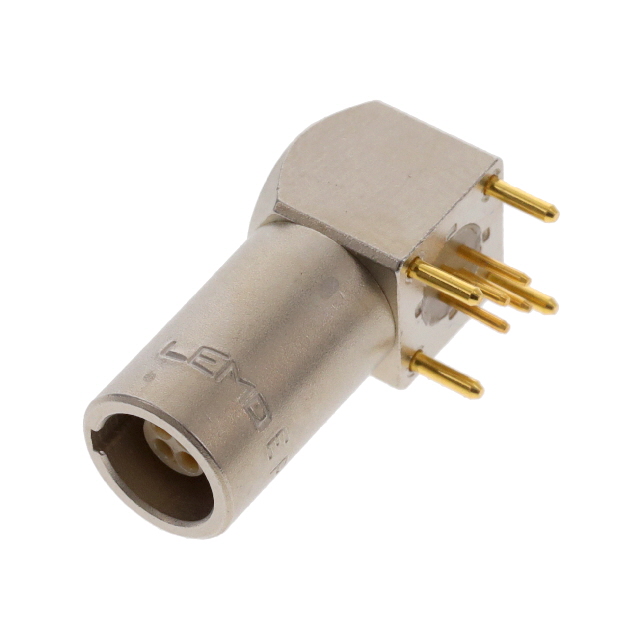

EPG.00.304.NLN

Active

LEMO

CONN RCPT FMALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	EPG.00.304.NLN

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	304
Shielding	Shielded
Termination	Solder

CONN RCPT FMALE 4POS GOLD SOLDER

Part	Orientation	Mounting Type	Features	Contact Material	Insert Material	Primary Material	Number of Positions	Material Flammability Rating	Ingress Protection	Fastening Type	Current Rating (Amps)	Shell Size - Insert	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Finish	Termination	Shielding	Connector Type
LEMO EPG.00.304.NLN	G	Through Hole, Right Angle	Ground	Bronze	Polyetheretherketone (PEEK)	Metal	4	UL94 V-0	IP50	Push-Pull	2 A	304	Gold	59 Áin	1.5 Ám	Brass	-55 °C	250 °C	Silver	Nickel	Solder	Shielded	Receptacle, Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder
