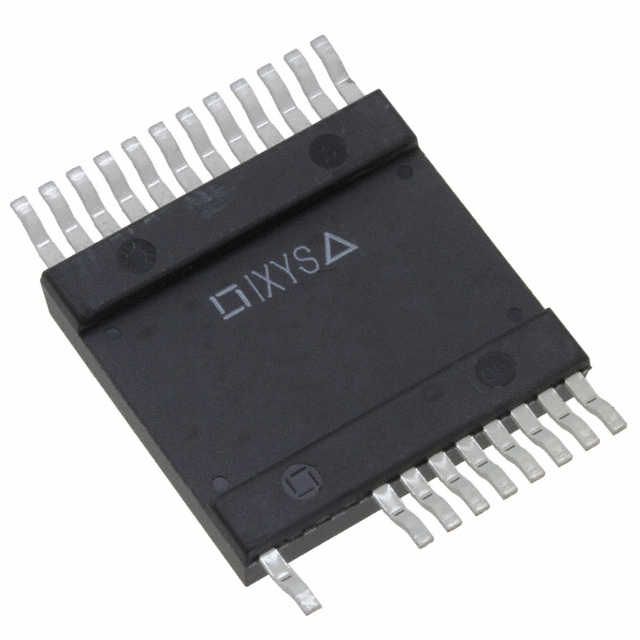

MMIX1X100N60B3H1

Active

IXYS

IGBT 600V 145A 400W SMPD

Search across all available documentation for this part.

Active

IXYS

IGBT 600V 145A 400W SMPD

Technical Specifications

Parameters and characteristics for this part

Specification	MMIX1X100N60B3H1

Current - Collector (Ic) (Max) [Max]	145 A
Current - Collector Pulsed (Icm)	440 A
Gate Charge	143 nC
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	24-PowerSMD, 21 Leads
Power - Max [Max]	400 W
Reverse Recovery Time (trr)	140 ns
Supplier Device Package	24-SMPD
Switching Energy	1.9 mJ, 2 mJ
Td (on/off) @ 25°C	120 ns
Td (on/off) @ 25°C	30 ns
Test Condition	360 V, 15 V, 2 Ohm, 70 A
Vce(on) (Max) @ Vge, Ic	1.8 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	Gate Charge	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Switching Energy	Test Condition	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Pulsed (Icm)	Reverse Recovery Time (trr)	Td (on/off) @ 25°C	Td (on/off) @ 25°C	Supplier Device Package	Power - Max [Max]
IXYS MMIX1X100N60B3H1	143 nC	24-PowerSMD 21 Leads	-55 °C	150 °C	145 A	1.8 V	1.9 mJ 2 mJ	2 Ohm 15 V 70 A 360 V	Surface Mount	600 V	440 A	140 ns	120 ns	30 ns	24-SMPD	400 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	300	$ 21.49

General part information

IGBT 600 V 145 A 400 W Surface Mount 24-SMPD

Technical documentation and resources

No documents available
