31-2373

Active

Amphenol RF

RF COAXIAL, TNC, STRAIGHT PLUG, 50OHM

Search across all available documentation for this part.

Active

Amphenol RF

RF COAXIAL, TNC, STRAIGHT PLUG, 50OHM

Technical Specifications

Parameters and characteristics for this part

Specification	31-2373

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-55
Cable Group	223, 142, 400
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 Contact
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Center Contact Plating	Center Contact Material	Mating Cycles	Cable Group	Cable Group	Connector Style	Mounting Type	Housing Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Frequency - Max [Max]	Impedance	Shield Termination	Contact Termination	Body Finish	Voltage Rating	Number of Ports	Dielectric Material	Body Material
Amphenol RF 31-2373	Gold	Brass	500	RG-55	142 223 400	TNC	Free Hanging (In-Line)	Silver	Male Pin Plug	-65 ░C	165 °C	1 Connector 1 Contact 1 Ferrule	11 GHz	50 Ohms	Crimp	Crimp Solder	Nickel	500 V	1	Polytetrafluoroethylene (PTFE)	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

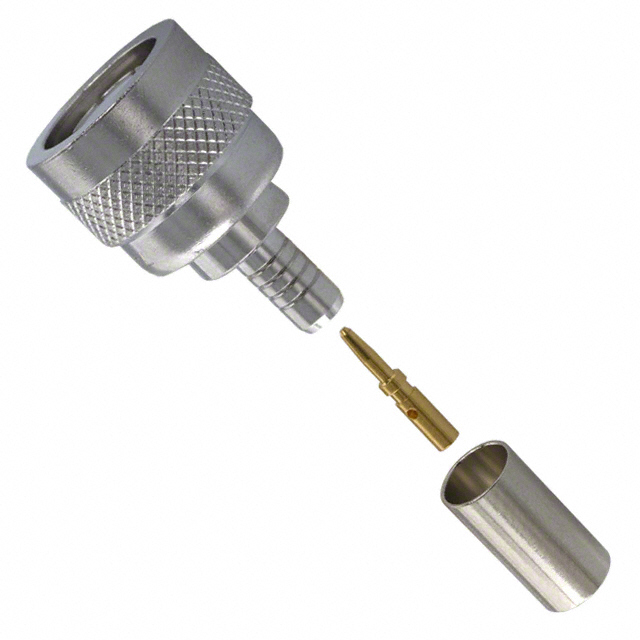

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
