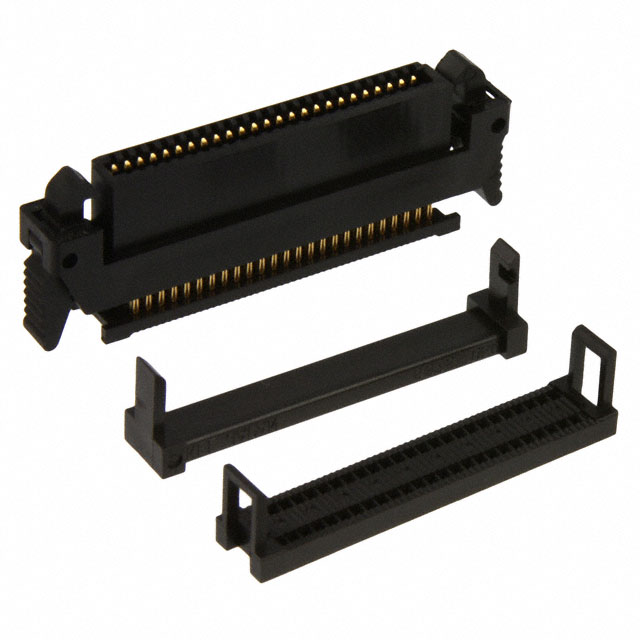

P25E-050S-EA

Active

3M (TC)

CONN IDC CONNECTOR SKT 50 POS 1.27MM IDT RA CABLE MOUNT LOOSE

Search across all available documentation for this part.

Active

3M (TC)

CONN IDC CONNECTOR SKT 50 POS 1.27MM IDT RA CABLE MOUNT LOOSE

Technical Specifications

Parameters and characteristics for this part

Part	Features	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows	Wire Gauge	Contact Finish	Connector Type	Wire Type	Mounting Type	Contact Finish Thickness	Contact Type	Fastening Type	Cable Termination	Color	Contact Finish Thickness	Contact Finish Thickness
3M (TC) P25E-050S-EA	Feed Through	0.05 in	1.27 mm	50	2	30 AWG	Gold	Receptacle	Ribbon Cable	Free Hanging (In-Line)	Flash	Female Socket	Latch Lock/Eject Hooks	IDC	Black
3M (TC) P25E-100S-TG	Feed Through	0.05 in	1.27 mm	100	2	30 AWG	Gold	Receptacle	Ribbon Cable	Free Hanging (In-Line)		Female Socket	Latch Lock/Eject Hooks	IDC	Black	10 Áin	0.25 Ám
3M (TC) P25E-040S-EA	Feed Through	0.05 in	1.27 mm	40	2	30 AWG	Gold	Receptacle	Ribbon Cable	Free Hanging (In-Line)	Flash	Female Socket	Latch Lock/Eject Hooks	IDC	Black
3M (TC) P25E-020S-EA	Feed Through	0.05 in	1.27 mm	20	2	30 AWG	Gold	Receptacle	Ribbon Cable	Free Hanging (In-Line)	Flash	Female Socket	Latch Lock/Eject Hooks	IDC	Black
3M (TC) P25E-050S-TG	Feed Through	0.05 in	1.27 mm	50	2	30 AWG	Gold	Receptacle	Ribbon Cable	Free Hanging (In-Line)		Female Socket	Latch Lock/Eject Hooks	IDC	Black	10 Áin	0.25 Ám
3M (TC) P25E-100S-EA	Feed Through	0.05 in	1.27 mm	100	2	30 AWG	Gold	Receptacle	Ribbon Cable	Free Hanging (In-Line)	Flash	Female Socket	Latch Lock/Eject Hooks	IDC	Black
3M (TC) P25E-060S-EA	Feed Through	0.05 in	1.27 mm	60	2	30 AWG	Gold	Receptacle	Ribbon Cable	Free Hanging (In-Line)	Flash	Female Socket	Latch Lock/Eject Hooks	IDC	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Rectangular Receptacle Connector IDC Gold 30 AWG
