IMC102TF048XUMA1

Active

Infineon Technologies

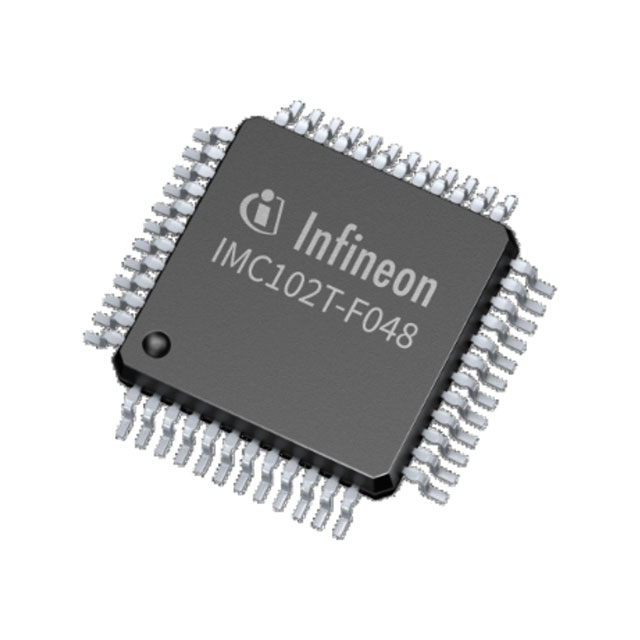

THE IMC102T-F048 IS A PMSM/BLDC MOTOR&PFC CONTROLLER WITH INTEGRATED SCRIPT ENGINE IN QFP-48 PACKAGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IMC102TF048XUMA1

Active

Infineon Technologies

THE IMC102T-F048 IS A PMSM/BLDC MOTOR&PFC CONTROLLER WITH INTEGRATED SCRIPT ENGINE IN QFP-48 PACKAGE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IMC102TF048XUMA1

Applications	Home Appliance
Current - Output	50 mA
Function	Controller - Commutation, Direction Management
Interface	Analog, PWM
Motor Type - AC, DC	Synchronous, AC
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (3)
Package / Case	48-LQFP
Supplier Device Package	PG-LQFP-48-10
Technology	CMOS
Voltage - Supply [Max]	40 VDC
Voltage - Supply [Min]	5.5 V

IMC102 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Motor Type - AC, DC	Output Configuration	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Applications	Interface	Supplier Device Package	Function	Current - Output	Package / Case	Technology
Infineon Technologies IMC102TF048XUMA1	105 °C	-40 °C	AC Synchronous	Half Bridge (3)	5.5 V	40 VDC	Surface Mount	Home Appliance	Analog PWM	PG-LQFP-48-10	Controller - Commutation Direction Management	50 mA	48-LQFP	CMOS
Infineon Technologies IMC102TF064XUMA1	105 °C	-40 °C	AC Synchronous		3 V	5.5 V	Surface Mount	Home Appliance	Analog PWM	PG-LQFP-64-26	Controller	50 mA	64-LQFP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.85
		10	$ 4.36
		25	$ 4.12
		100	$ 3.57
		250	$ 3.39
		500	$ 3.04
	Digi-Reel®	1	$ 4.85
		10	$ 4.36
		25	$ 4.12
		100	$ 3.57
		250	$ 3.39
		500	$ 3.04
	Tape & Reel (TR)	1500	$ 2.38
		3000	$ 2.27
Newark	Each (Supplied on Cut Tape)	1	$ 4.66
		10	$ 3.54
		25	$ 3.26
		50	$ 3.10
		100	$ 2.95
		250	$ 2.80
		500	$ 2.71

Description

General part information

IMC102 Series

iMOTION™ motor & PFC controllerwith Motion Control Engine (MCE 2.0) and support for customer scripts in QFP-48 package. The IMC102T-F048 is a flexible control solution for variable speed drives including power factor correction (PFC). It performs sensor less field oriented control (FOC) for a permanent magnet synchronous motor (PMSM) in parallel with a boost or totem pole PFC. The integrated script engine (small virtual machine) provides application flexibility by running customer scripts.
