SGSSP4-400Q88

Active

BANNER ENGINEERING

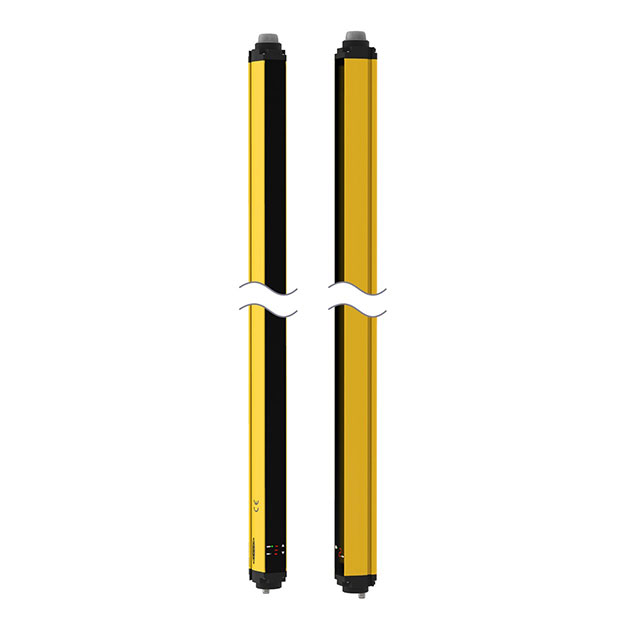

SGS SAFETY GRID SYSTEM, EMITTER/RECEIVER PAIR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, EMITTER/RECEIVER PAIR

Technical Specifications

Parameters and characteristics for this part

Specification	SGSSP4-400Q88

Beam Pitch	400 mm
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams [custom]	4
Operating Range [Max]	30 m
Operating Range [Min]	0.5 m
Protective Height	1200 mm
Voltage - Supply	24 VDC

Part	Number of Beams [custom]	Beam Pitch	Protective Height	Operating Range [Min]	Operating Range [Max]	Ingress Protection	Voltage - Supply
BANNER ENGINEERING SGSSP4-300Q88	4	300 mm	900 mm	0.5 m	30 m	IP65 - Dust Tight Water Resistant	24 VDC
BANNER ENGINEERING SGSSP4-400Q88	4	400 mm	1200 mm	0.5 m	30 m	IP65 - Dust Tight Water Resistant	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1903.01
Newark	Each	1	$ 1936.00

General part information

Light Curtain
