357-020-454-103

Active

EDAC Inc.

CONN EDGE DUAL FMALE 40POS 0.156

357-020-454-103

Active

EDAC Inc.

CONN EDGE DUAL FMALE 40POS 0.156

Description Specifications Series Pricing CAD Documents

Description

General part information

357-020 Series

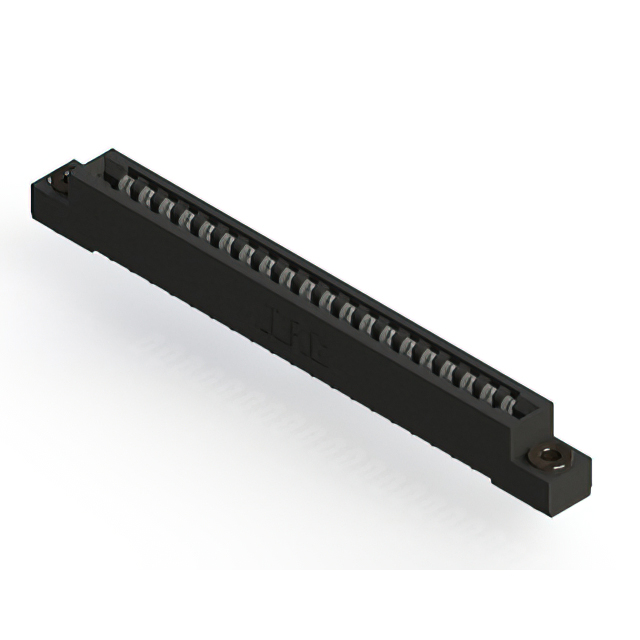

40 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	357-020-454-103

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature Diameter	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Surface Mount
Number of Positions	40, 20
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1 rows

357-020 Series

...

Part	Card Type	Number of Positions	Mounting Type	Card Thickness (Min)	Card Thickness (Max)	Pitch	Contact Material	Gender	Read Out	Termination	Contact Finish	Color	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Features	Contact Type	Termination Rows	Material - Insulation	Contact Finish Thickness	Flange Feature	Flange Feature Diameter
EDAC Inc. 357-020-455-201	Dual Edge Non Specified	10 20	Board Edge Straddle Mount	0.054 in	0.07 in	0.156 in	Copper Alloy	Female	Dual	Solder Eyelet(s)	Tin	Black	2	-40 °C	105 °C	Card Extender	Semi Bellows	2 rows	Polyester Thermoplastic
EDAC Inc. 357-020-558-268	Dual Edge Non Specified	10 20	Right Angle Through Hole	0.054 in	0.07 in	0.156 in	Copper Alloy	Female	Dual	Solder Wire Wrap	Gold	Black	2	-40 °C	105 °C	Card Guides	Semi Bellows	2 rows	Polyester Thermoplastic	10 Ąin	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 357-020-540-202	Dual Edge Non Specified	10 20	Through Hole	0.054 in	0.07 in	0.156 in	Copper Alloy	Female	Dual	Wire Wrap	Gold	Black	2	-40 °C	105 °C		Semi Bellows	2 rows	Polyester Thermoplastic	10 Ąin	Flush Mount Top Opening Unthreaded	0.128 in
EDAC Inc. 357-020-454-103	Dual Edge Non Specified	20 40	Surface Mount	0.054 in	0.07 in	0.156 in	Copper Alloy	Female	Dual	Solder Eyelet(s)	Tin	Black	2	-40 °C	105 °C		Semi Bellows	1 rows	Polyester Thermoplastic		Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 357-020-447-104	Non Specified Single Edge	20	Through Hole	0.054 in	0.07 in	0.156 in	Copper Alloy	Female	Single	Wire Wrap	Tin	Black	1	-40 °C	105 °C		Semi Bellows	1 rows	Polyester Thermoplastic		Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 357-020-545-178	Non Specified Single Edge	20	Through Hole	0.054 in	0.07 in	0.156 in	Copper Alloy	Female	Single	Wire Wrap	Gold	Black	1	-40 °C	105 °C	Card Guides	Semi Bellows	1 rows	Polyester Thermoplastic	10 Ąin	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 357-020-458-158	Non Specified Single Edge	20	Right Angle Through Hole	0.054 in	0.07 in	0.156 in	Copper Alloy	Female	Single	Solder	Tin	Black	1	-40 °C	105 °C	Card Guides	Semi Bellows	1 rows	Polyester Thermoplastic		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 357-020-442-258	Dual Edge Non Specified	10 20	Through Hole	0.054 in	0.07 in	0.156 in	Copper Alloy	Female	Dual	Wire Wrap	Tin	Black	2	-40 °C	105 °C	Card Guides	Semi Bellows	2 rows	Polyester Thermoplastic		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 357-020-442-207	Dual Edge Non Specified	10 20	Through Hole	0.054 in	0.07 in	0.156 in	Copper Alloy	Female	Dual	Wire Wrap	Tin	Black	2	-40 °C	105 °C		Semi Bellows	2 rows	Polyester Thermoplastic		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 357-020-431-112	Non Specified Single Edge	20	Through Hole	0.054 in	0.07 in	0.156 in	Copper Alloy	Female	Single	Solder	Tin	Black	1	-40 °C	105 °C		Semi Bellows	1 rows	Polyester Thermoplastic		Flush Mount Side Opening Unthreaded	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

357-020-454-103 | Datasheet
