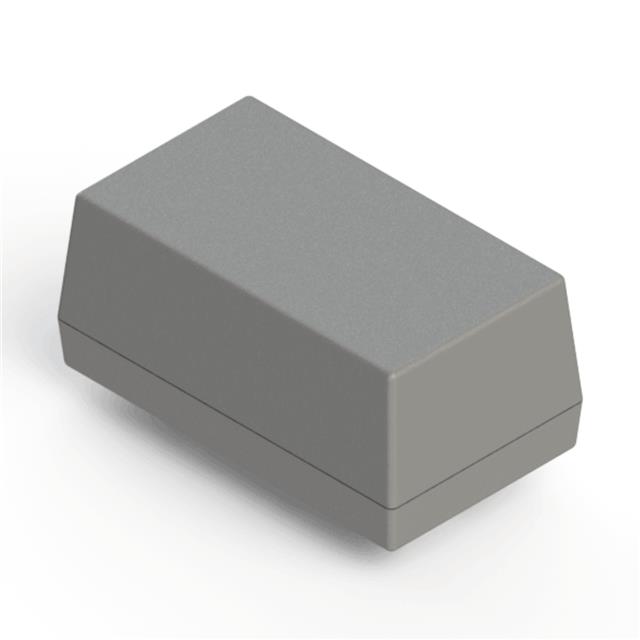

153,GY

Active

Serpac

BOX ABS GRAY 5.62"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 5.62"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	153,GY

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.291 lb
Weight	132 g

Part	Ratings	Material Flammability Rating	Weight	Weight	Design	Features	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Material	Thickness	Thickness	Color	Height [z]	Height [z]
Serpac 153,AL	IP40 NEMA 1	UL94 HB	0.291 lb	132 g	Hand Held Split Sides	PCB Supports	18.3 in²	118 cm²	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Plastic ABS	2.54 mm	0.1 in	Almond	63.5 mm	2.5 in
Serpac 153,GY	IP40 NEMA 1	UL94 HB	0.291 lb	132 g	Hand Held Split Sides	PCB Supports	18.3 in²	118 cm²	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Plastic ABS	2.54 mm	0.1 in	Gray	63.5 mm	2.5 in
Serpac 153,BK	IP40 NEMA 1	UL94 HB	0.291 lb	132 g	Hand Held Split Sides	PCB Supports	18.3 in²	118 cm²	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Plastic ABS	2.54 mm	0.1 in	Black	63.5 mm	2.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 5.620" L x 3.250" W (142.75mm x 82.55mm) X 2.500" (63.50mm)
