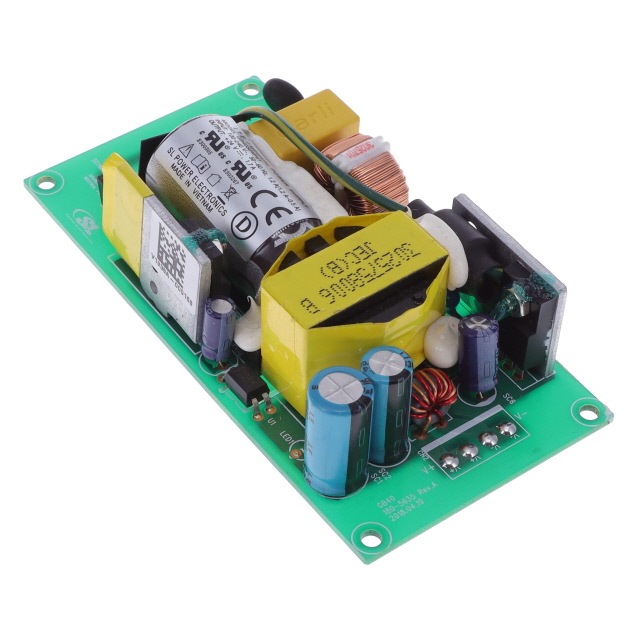

GB40S24P01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 41W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 41W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 24V 41W

Part	Power (Watts)	Type	Minimum Load Required	Voltage - Input [Max]	Voltage - Input [Min]	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Current - Output 1	Applications	Voltage - Output 1	Efficiency	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Standard Number
SL POWER / Advanced Energy GB40S24K01	41 W	Open Frame		240 VAC	100 VAC	Universal Input	101.6 mm	25.4 mm	1 "	4 in	48.26 mm	48.3 mm	Chassis Mount	4000 V	-25 °C	70 °C	CE, cURus, UL	1.7 A	ITE (Commercial), Medical	24 V	88 %	1
SL POWER / Advanced Energy GB40S24P01	41 W	Open Frame		264 VAC	90 VAC	Universal Input	101.6 mm		0.81 in	4 in	2 in		Chassis Mount	4000 V	-25 °C	70 °C	CE, cURus, DEMKO	1.7 A	ITE (Commercial), Medical	24 V	88 %	1	20.6 mm	50.8 mm	60601-1, 62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 12.35

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
