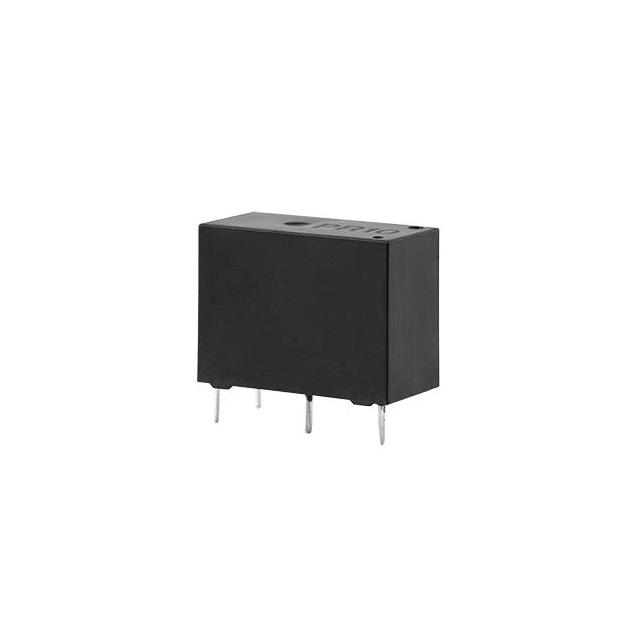

PR10-12V-450-1C
ActiveCUI Devices
RELAY GEN PURPOSE SPDT 10A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR10-12V-450-1C
ActiveCUI Devices
RELAY GEN PURPOSE SPDT 10A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR10-12V-450-1C |
|---|---|
| Coil Current | 37.5 mA |
| Coil Resistance | 320 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 2500 VA, 280 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage | 250 VAC, 28 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.11 | |
| 10 | $ 1.04 | |||
| 25 | $ 0.92 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.83 | |||
| 250 | $ 0.81 | |||
Description
General part information
PR10-12V Series
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
