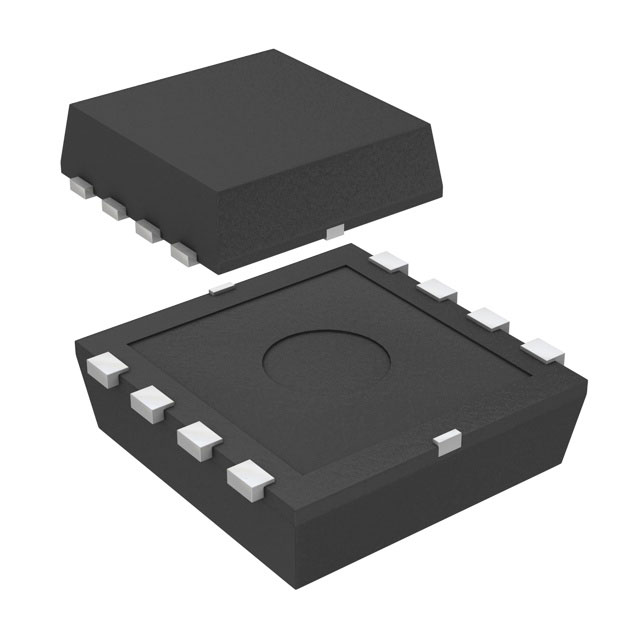

TB62763FMG,8,EL
ActiveToshiba Semiconductor and Storage
IC LED DRIVER RGLTR 80MA 8SON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TB62763FMG,8,EL
ActiveToshiba Semiconductor and Storage
IC LED DRIVER RGLTR 80MA 8SON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TB62763FMG,8,EL |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 80 mA |
| Frequency [Max] | 2 MHz |
| Frequency [Min] | 200 kHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD, Flat Leads Exposed Pad |
| Supplier Device Package | 8-SON (2.9x2.8) |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) [Min] | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.88 | |
| Digi-Reel® | 1 | $ 1.88 | ||
| Tape & Reel (TR) | 3000 | $ 0.48 | ||
| 6000 | $ 0.44 | |||
| 9000 | $ 0.44 | |||
Description
General part information
TB62763 Series
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Dimming 80mA 8-SON (2.9x2.8)
