T1M-04-F-SH-L

Active

Samtec Inc.

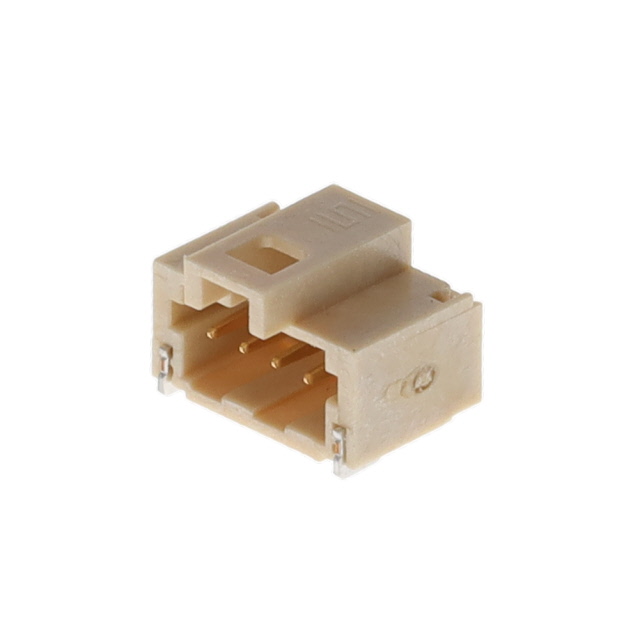

CONN, R/A HEADER, 4POS, 1ROW, 1MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Discrete Wire Terminal Strip, 1.00 mm Pitch +2

T1M-04-F-SH-L

Active

Samtec Inc.

CONN, R/A HEADER, 4POS, 1ROW, 1MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Discrete Wire Terminal Strip, 1.00 mm Pitch +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T1M-04-F-SH-L

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	4.6 mm
Insulation Height	0.181 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC, 353 VDC

T1M-04 Series

Part	Contact Type	Contact Shape	Contact Material	Insulation Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Fastening Type	Number of Rows	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish - Post	Current Rating (Amps)	Material Flammability Rating	Style	Connector Type	Number of Positions	Insulation Color	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [custom]	Insulation Height [custom]	Features
Samtec Inc. T1M-04-S-S-V-TR	Male Pin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	250 VAC 353 VDC	85 °C	-55 °C	Shrouded - 4 Wall	Locking Ramp	1	Surface Mount	0.039 in	1 mm	Gold	0.167 in	4.25 mm	All	Tin	3.3 A	UL94 V-0	Board to Cable/Wire	Header	4	Natural	Solder
Samtec Inc. T1M-04-GF-S-RA-TR	Male Pin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	250 VAC 353 VDC	85 °C	-55 °C	Shrouded - 4 Wall	Locking Ramp	1	Surface Mount Right Angle	0.039 in	1 mm	Gold	0.126 in	3.2 mm	All	Gold	3.3 A	UL94 V-0	Board to Cable/Wire	Header	4	Natural	Solder	3 µin	0.076 µm	3 µin	0.076 µm
Samtec Inc. T1M-04-F-SH-L	Male Pin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	250 VAC 353 VDC	85 °C	-55 °C	Shrouded - 4 Wall	Locking Ramp	1	Surface Mount Right Angle	0.039 in	1 mm	Gold	0.181 in	4.6 mm	All	Tin	3.3 A	UL94 V-0	Board to Cable/Wire	Header	4	Natural	Solder			3 µin	0.076 µm
Samtec Inc. T1M-04-F-SV-L-P	Male Pin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	250 VAC 353 VDC	85 °C	-55 °C	Shrouded - 4 Wall	Locking Ramp	1	Surface Mount	0.039 in	1 mm	Gold			All	Tin	3.3 A	UL94 V-0	Board to Cable/Wire	Header	4	Natural	Solder			3 µin	0.076 µm	5.51 mm	0.217 in	Pick and Place
Samtec Inc. T1M-04-GF-S-V-K-TR	Male Pin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	250 VAC 353 VDC	85 °C	-55 °C	Shrouded - 4 Wall	Locking Ramp	1	Surface Mount	0.039 in	1 mm	Gold	0.167 in	4.25 mm	All	Gold	3.3 A	UL94 V-0	Board to Cable/Wire	Header	4	Natural	Solder	3 µin	0.076 µm	3 µin	0.076 µm			Pick and Place
