1376137-1

Active

TE Connectivity AMP Connectors

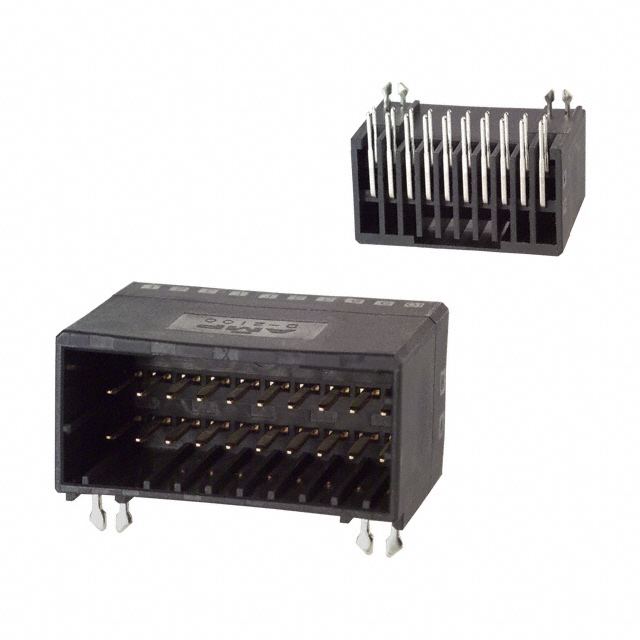

CONN HEADER R/A 20POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 20POS 2.5MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1376137-1	1376137 Series

Applications	General Purpose, Industrial	General Purpose, Industrial
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Length - Post [x]	0.134 in	0.134 in
Contact Length - Post [x]	3.4 mm	3.4 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Rectangular	Rectangular
Contact Type	Tab	Tab
Current Rating (Amps)	5 A	5 A
Fastening Type	Detent Lock	Detent Lock
Insulation Color	Black	Black
Insulation Height	14.7 mm	14.7 mm
Insulation Height	0.579 in	0.579 in
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	20	20
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	2.5 mm	2.5 mm
Pitch - Mating	0.098 in	0.098 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

CONN HEADER R/A 20POS 2.5MM

Part	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Current Rating (Amps)	Insulation Color	Contact Finish - Post	Applications	Style	Insulation Height	Insulation Height	Contact Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mounting Type	Shrouding	Material Flammability Rating	Number of Rows	Insulation Material	Contact Material	Termination	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type
TE Connectivity AMP Connectors 1376137-1	All	15 µin	0.38 µm	20	5 A	Black	Tin	General Purpose, Industrial	Board to Board, Cable	14.7 mm	0.579 in	Tab	Detent Lock	105 ░C	-55 °C	250 VAC	Through Hole, Right Angle	Shrouded - 4 Wall	UL94 V-0	2	Glass Filled, Polyester, Thermoplastic	Copper Alloy	Solder	Gold	0.134 in	3.4 mm	Rectangular	2.5 mm	0.098 in	Header
TE Connectivity AMP Connectors 1376137-2	All	15 µin	0.38 µm	20	5 A	Black	Tin	General Purpose, Industrial	Board to Board, Cable	14.7 mm	0.579 in	Tab	Detent Lock	105 ░C	-55 °C	250 VAC	Through Hole, Right Angle	Shrouded - 4 Wall	UL94 V-0	2	Glass Filled, Polyester, Thermoplastic	Copper Alloy	Solder	Gold	0.134 in	3.4 mm	Rectangular	2.5 mm	0.098 in	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 20 position 0.098" (2.50mm)
