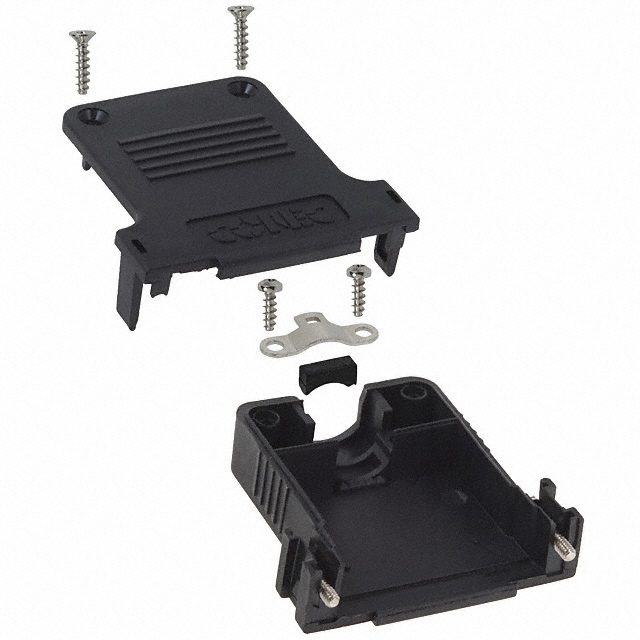

165X13389X

Active

Amphenol CONEC

25 POS HOOD

Search across all available documentation for this part.

Active

Amphenol CONEC

25 POS HOOD

Technical Specifications

Parameters and characteristics for this part

Specification	165X13389X

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Black
Compatible D-Sub Size	HD44pos, 25pos
Compatible Shell Size	B
Features	Mating Screws 4-40
Hardware	Assembly Hardware, Cable Clamp, Strain Relief
Material	Polyester
Primary Material	Plastic
Shielding	Unshielded

Part	Material	Shielding	Primary Material	Cable Exit	Compatible Shell Size	Accessory Type	Features	Compatible D-Sub Size	Number of Positions	Color	Cable Type	Hardware
Amphenol CONEC 165X13379X	Polyester	Unshielded	Plastic	180 °	A	Two Piece Backshell	Mating Screws 4-40	15pos HD26pos	15	Black	Round
Amphenol CONEC 165X13399XE	Polybutylene Terephthalate (PBT)	Unshielded	Plastic	180 °	C	Two Piece Backshell	Mating Screws 4-40	37pos HD62pos	37	Black	Round
Amphenol CONEC 165X13399X	Polyester	Unshielded	Plastic	180 °	C	Two Piece Backshell	Mating Screws 4-40	37pos HD62pos	37	Black	Round
Amphenol CONEC 165X13389XE	Polybutylene Terephthalate (PBT)	Unshielded	Plastic	180 °	B	Two Piece Backshell	Mating Screws 4-40	25pos HD44pos		Black	Round	Assembly Hardware Strain Relief
Amphenol CONEC 165X13379XE	Polybutylene Terephthalate (PBT)	Unshielded	Plastic	180 °	A	Two Piece Backshell	Mating Screws 4-40	15pos HD26pos	15	Black	Round	Assembly Hardware Strain Relief
Amphenol CONEC 165X13389X	Polyester	Unshielded	Plastic	180 °	B	Two Piece Backshell	Mating Screws 4-40	25pos HD44pos		Black	Round	Assembly Hardware Cable Clamp Strain Relief
Amphenol CONEC 165X13369XE	Polybutylene Terephthalate (PBT)	Unshielded	Plastic	180 °	E	Two Piece Backshell	Mating Screws 4-40	9pos HD15pos	9	Black	Round	Assembly Hardware Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position Two Piece Backshell Connector Black 180° Unshielded

Technical documentation and resources

No documents available
