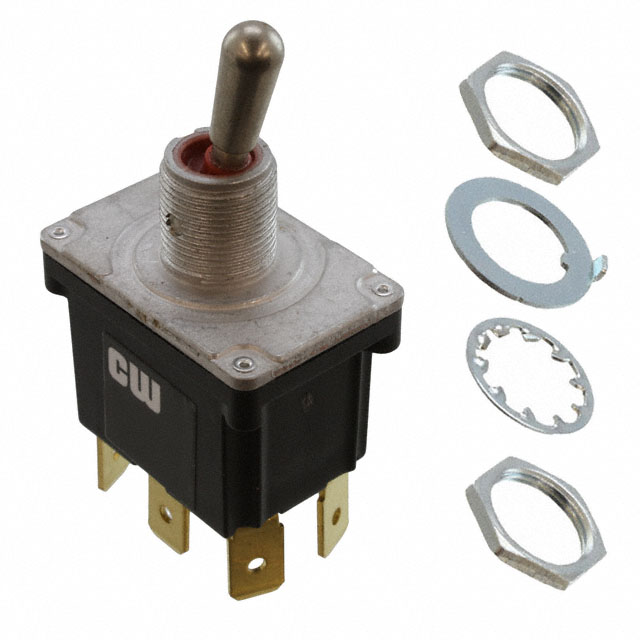

GTB-4B13

Active

CW Industries

SWITCH TOGGLE DPDT 12A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH TOGGLE DPDT 12A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GTB-4B13	GTB-4B1 Series

Actuator Length [x]	16.2 mm	16.2 mm
Actuator Material	Brass, Nickel Plated	Brass, Nickel Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	12 A	12 A
Electrical Life	30000 Cycles	30000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions [diameter]	12 mm	12 mm
Switch Function	On-On	On-On, On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

SWITCH TOGGLE DPDT 12A 125V

Part	Bushing Thread	Switch Function	Actuator Length [x]	Illumination	Actuator Type	Voltage Rating - AC	Termination Style	Electrical Life	Circuit	Ingress Protection	Actuator Material	Current Rating (Amps)	Panel Cutout Dimensions [diameter]
CW Industries GTB-4B13	15/32-32	On-On	16.2 mm	Non-Illuminated	Standard Round	125 V	Quick Connect - 0.250" (6.3mm)	30000 Cycles	DPDT	IP68 - Dust Tight, Waterproof	Brass, Nickel Plated	12 A	12 mm
CW Industries GTB-4B18	15/32-32	On-Mom	16.2 mm	Non-Illuminated	Standard Round	125 V	Quick Connect - 0.250" (6.3mm)	30000 Cycles	DPDT	IP68 - Dust Tight, Waterproof	Brass, Nickel Plated	12 A	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
