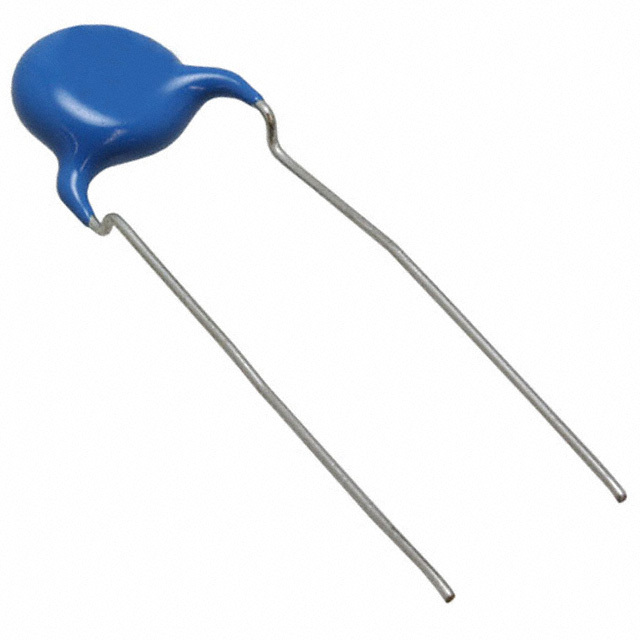

C941U332MZWDBA7317

Active

KEMET

CAP CER 3300PF 440VAC Y5U RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet KEM_C1065_X1_440_VAC_Y2_300_VAC.pdf +1

C941U332MZWDBA7317

Active

KEMET

CAP CER 3300PF 440VAC Y5U RADIAL

Deep-Dive with AI

DocumentsDatasheet KEM_C1065_X1_440_VAC_Y2_300_VAC.pdf +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C941U332MZWDBA7317

Applications	Safety
Capacitance	3300 pF
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lead Style	Formed Leads - Kinked
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Ratings [custom]	2
Ratings [custom]	1
Size / Dimension [diameter]	11 mm
Size / Dimension [diameter]	0.433 "
Temperature Coefficient	Y5U (E)
Tolerance	20 %
Voltage - Rated	440 VAC

C941U Series

Part	Package / Case	Ratings	Lead Style	Lead Spacing	Lead Spacing	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Temperature Coefficient	Voltage - Rated	Mounting Type	Applications	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Ratings [custom]	Ratings [custom]
KEMET C941U102KVYDBA7317	Disc Radial	X1 Y1	Formed Leads - Kinked	0.394 in	10 mm	0.001 µF	11 mm	0.433 "	Y5P (B)	400 VAC	Through Hole	Safety	10 %	125 °C	-40 °C
KEMET C941U102KUYDAAWL45	Disc Radial	X1 Y1	Straight	0.394 in	10 mm	0.001 µF	11 mm	0.433 "	Y5P (B)	400 VAC	Through Hole	Safety	10 %	125 °C	-40 °C
KEMET C941U332MZWDBA7317	Disc Radial		Formed Leads - Kinked	0.394 in	10 mm	3300 pF	11 mm	0.433 "	Y5U (E)	440 VAC	Through Hole	Safety	20 %	125 °C	-40 °C	2	1
KEMET C941U472MZVDBAWL35	Disc Radial		Formed Leads - Kinked	0.394 in	10 mm	4700 pF	11 mm	0.433 "	Y5V (F)	440 VAC	Through Hole	Safety	20 %	125 °C	-40 °C	2	1
KEMET C941U472MZVDBA7317	Disc Radial		Formed Leads - Kinked	0.394 in	10 mm	4700 pF	11 mm	0.433 "	Y5V (F)	440 VAC	Through Hole	Safety	20 %	125 °C	-40 °C	2	1
KEMET C941U332MYWDAAWL20	Disc Radial		Straight	0.394 in	10 mm	3300 pF	11 mm	0.433 "	Y5U (E)	400 VAC	Through Hole	Safety	20 %	125 °C	-40 °C	2	1
KEMET C941U332MVVDCAWL40	Disc Radial	X1 Y1	Formed Leads - Kinked	0.394 in	10 mm	3300 pF	11 mm	0.433 "	Y5V (F)	400 VAC	Through Hole	Safety	20 %	125 °C	-40 °C
KEMET C941U102KVYDAAWL45	Disc Radial	X1 Y1	Straight	0.394 in	10 mm	0.001 µF	11 mm	0.433 "	Y5P (B)	400 VAC	Through Hole	Safety	10 %	125 °C	-40 °C
KEMET C941U332MVVDBA7317	Disc Radial	X1 Y1	Formed Leads - Kinked	0.394 in	10 mm	3300 pF	11 mm	0.433 "	Y5V (F)	400 VAC	Through Hole	Safety	20 %	125 °C	-40 °C
KEMET C941U102KVYDAA7317	Disc Radial	X1 Y1	Straight	0.394 in	10 mm	0.001 µF	11 mm	0.433 "	Y5P (B)	400 VAC	Through Hole	Safety	10 %	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	10000	$ 0.09

Description

General part information

C941U Series

3300 pF ±20% 440VAC Ceramic Capacitor Y5U (E) Radial, Disc

Documents

Technical documentation and resources

Datasheet

KEM_C1065_X1_440_VAC_Y2_300_VAC.pdf
