RP-3252-1B1

Active

RF Industries

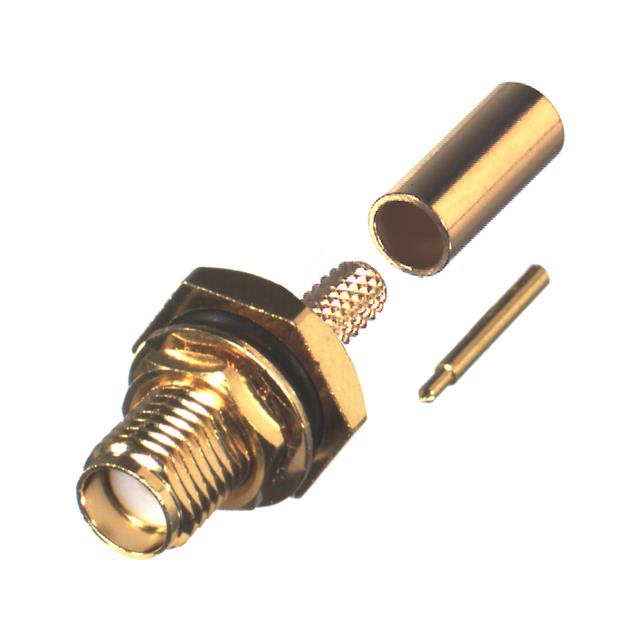

RP SMA FEMALE BH CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

RP SMA FEMALE BH CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RP-3252-1B1

Body Finish	Gold
Body Material	Brass
Cable Group	RG-316 Double Braid
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	375 V

Part	Contact Termination	Shield Termination	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Body Material	Connector Style	Center Contact Material	Number of Ports	Impedance	Body Finish	Voltage Rating	Mounting Feature	Connector Type	Dielectric Material	Housing Color	Cable Group
RF Industries RP-3252-1B1	Solder	Crimp	12.4 GHz	-65 ░C	165 °C	Gold	Brass	RP-SMA	Brass	1	50 Ohms	Gold	375 V	Bulkhead - Front Side Nut	Jack Male Pin	Polytetrafluoroethylene (PTFE)	Gold	RG-316 Double Braid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Jack, Male Pin 50 Ohms Panel Mount Solder

Technical documentation and resources

No documents available
