ADT-2697-SF-SSM-02

Active

Cinch Connectivity Solutions Midwest Microwave

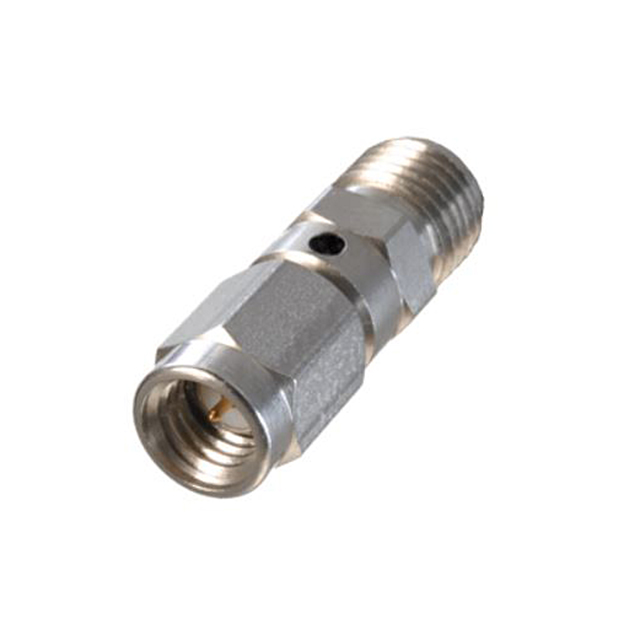

CONN ADAPT SSMA PLUG TO SMA JACK

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Midwest Microwave

CONN ADAPT SSMA PLUG TO SMA JACK

Technical Specifications

Parameters and characteristics for this part

Specification	ADT-2697-SF-SSM-02

Adapter Series	SMA to SSMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SSMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	25 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

CONN ADAPT SSMA PLUG TO SMA JACK

Part	Conversion Type	Convert From (Adapter End)	Convert To (Adapter End)	Frequency - Max [Max]	Adapter Type	Dielectric Material	Impedance	Adapter Series	Center Contact Plating	Style	Center Contact Material	Mounting Type	Body Material
Cinch Connectivity Solutions Midwest Microwave ADT-2697-SF-SSM-02	Between Series	SSMA Plug, Male Pin	Female Socket, SMA Jack	25 GHz	Plug to Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	SMA to SSMA	Gold	Straight	Beryllium Copper	Free Hanging (In-Line)	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SSMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
