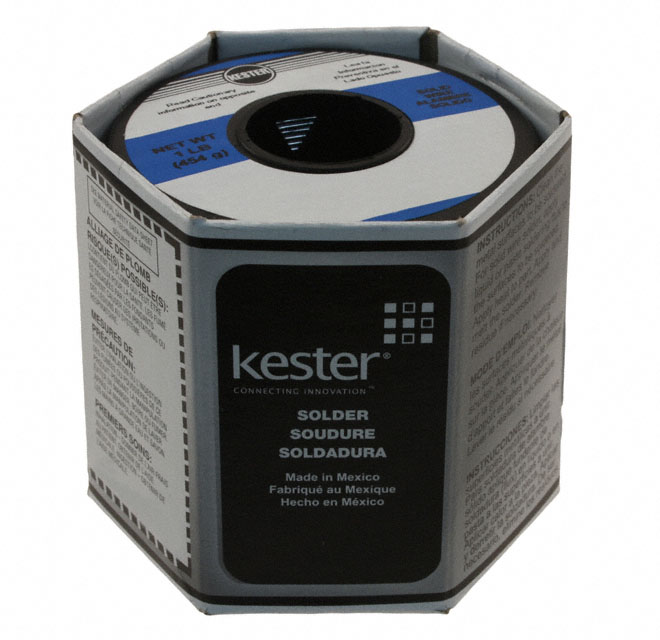

14-6337-0031

Active

Kester Solder

SOLDER SOLID WIRE 20AWG 63/37

Search across all available documentation for this part.

Active

Kester Solder

SOLDER SOLID WIRE 20AWG 63/37

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	14-6337-0031	14-6337 Series

Diameter	-	0.015 - 0.125 in
Diameter	-	0.38 - 3.18 mm
Form	Spool, 1 lb (454 g)	Spool, 1 lb (454 g)
Melting Point [custom]	361 °F	361 °F
Melting Point [custom]	183 °C	183 °C
Process	Leaded	Leaded
Shelf Life	36 Months	36 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	40 °C	40 °C
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Wire Solder	Wire Solder
Weight	453.59 g	453.59 g
Weight	1 lbs	1 lbs
Wire Gauge	20 AWG, 22 SWG	20 AWG, 22 SWG
Wire Gauge	-	8 - 28 AWG

SOLDER 63/37 27AWG 1LB

Part	Process	Type	Wire Gauge	Form	Diameter [diameter]	Diameter [diameter]	Melting Point [custom]	Melting Point [custom]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life Start	Shelf Life	Wire Gauge	Weight	Weight
Kester Solder 14-6337-0015	Leaded	Wire Solder	27 AWG, 28 SWG	Spool, 1 lb (454 g)	0.015 in	0.38 mm	361 °F	183 °C	10 °C	40 °C
Kester Solder 14-6337-0031	Leaded	Wire Solder		Spool, 1 lb (454 g)			361 °F	183 °C	10 °C	40 °C	Date of Manufacture	36 Months	20 AWG, 22 SWG	453.59 g	1 lbs
Kester Solder 14-6337-0125	Leaded	Wire Solder	8 AWG, 10 SWG	Spool, 1 lb (454 g)	0.125 "	3.18 mm	361 °F	183 °C	10 °C	40 °C
Kester Solder 14-6337-0062	Leaded	Wire Solder	13.5 AWG, 16 SWG	Spool, 1 lb (454 g)	0.062 in	1.57 mm	361 °F	183 °C	10 °C	40 °C	Date of Manufacture	36 Months		453.59 g	1 lbs
