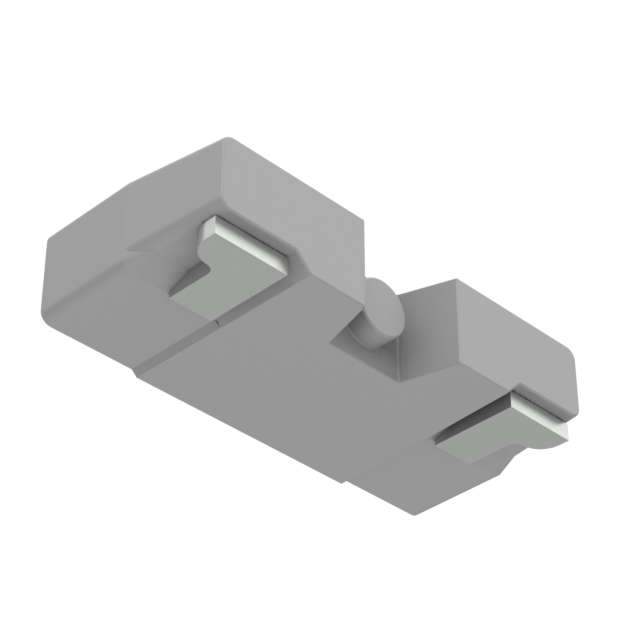

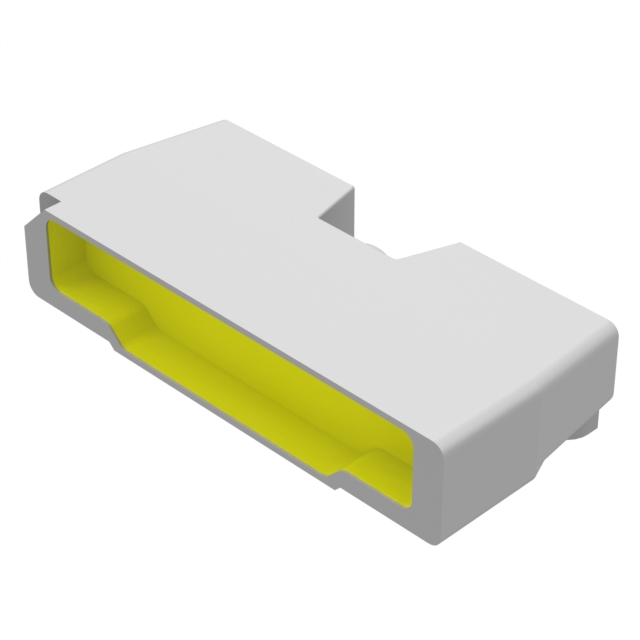

LTST-S04TWET
ActiveDiodes Inc
LED WHITE SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LTST-S04TWET
ActiveDiodes Inc
LED WHITE SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTST-S04TWET |
|---|---|
| Color | White |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.53 mm |
| Lens Color | Yellow |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 0.43 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 2250 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 0.9 mm |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.36 | ||
| 10 | $ 0.24 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
| Tape & Reel (TR) | 3000 | $ 0.06 | ||
| 6000 | $ 0.06 | |||
Description
General part information
LTST-S04 Series
White LED Indication - Discrete 2.9V 2-SMD, No Lead
