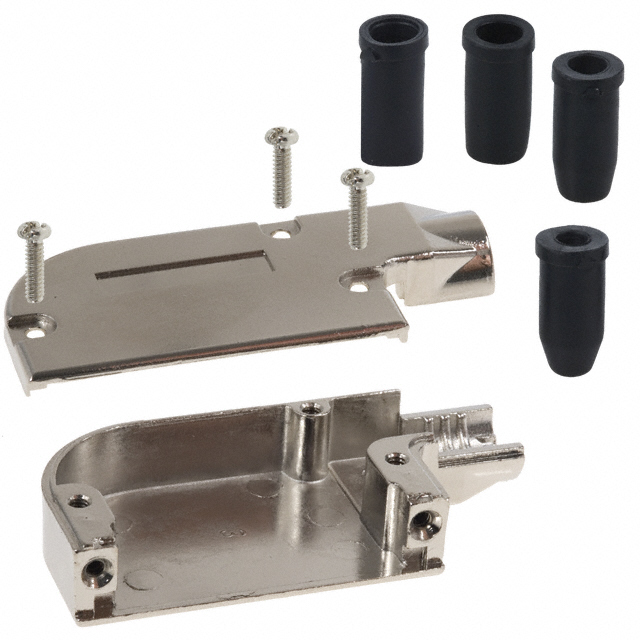

981-025-030R121 - 981-025-030(-,R)121

981-025-030R121

Active
MH Connectors

D SUB BACKSHELL, ARMOR 981 SERIES, DB, 90°, ZINC ALLOY BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBackshell Reference Guide+3
981-025-030R121 - 981-025-030(-,R)121

981-025-030R121

Active
MH Connectors

D SUB BACKSHELL, ARMOR 981 SERIES, DB, 90°, ZINC ALLOY BODY

Deep-Dive with AI

DocumentsDatasheetBackshell Reference Guide+3

Technical Specifications

Parameters and characteristics for this part

Specification981-025-030R121
Accessory TypeTwo Piece Backshell
Cable Exit90 °
Cable TypeRound
ColorSilver
Compatible D-Sub SizeHD44pos, 25pos
Compatible Shell SizeB
HardwareAssembly Hardware, Grommets
MaterialZinc Alloy, Metal
PlatingNickel over Copper
Primary MaterialMetal
ShieldingShielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 10.78
10$ 8.28
25$ 7.48
50$ 6.94
100$ 6.44
250$ 5.86
500$ 5.47
1000$ 5.12
NewarkEach 50$ 7.78
100$ 7.40
250$ 6.62
500$ 6.23
1000$ 5.45

Description

General part information

981-025 Series

The 981 series Ethernet D-sub Backshell is available in 3 industry sizes/positions (9, 15 and 25) and also available in die cast for over 70dB shielding. It is non-conductive grommet/strain relief supplied to enhance shielding and provide proper strain relief.
