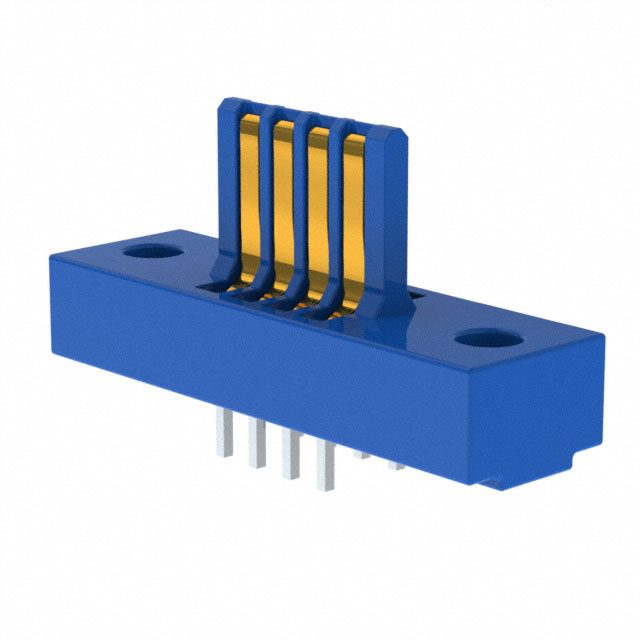

EBC04MMWD

Active

Sullins Connector Solutions

CONN CARDEDGE MALE 8POS 0.100

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EBC04MMWD

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Fits Female Edgecards
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature	0.125 "
Flange Feature	3.18 mm
Gender	Male
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Positions	8
Number of Positions/Bay/Row [custom]	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder

EBC04 Series

Part	Gender	Mounting Type	Number of Rows	Card Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Contact Finish	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Material - Insulation	Read Out	Flange Feature	Flange Feature	Flange Feature	Contact Type
Sullins Connector Solutions EBC04MMBD	Male	Through Hole Right Angle	2	Fits Female Edgecards	Solder	10 Áin	0.25 Ám	0.062 in	1.57 mm	2.54 mm	0.1 in	4	Gold	8	125 °C	-65 ░C	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Dual	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm
Sullins Connector Solutions EBC04MMMN	Male	Through Hole	2	Fits Female Edgecards	Wire Wrap	10 Áin	0.25 Ám	0.062 in	1.57 mm	2.54 mm	0.1 in	4	Gold	8	125 °C	-65 ░C	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Dual
Sullins Connector Solutions EBC04MMMD	Male	Through Hole	2	Fits Female Edgecards	Wire Wrap	10 Áin	0.25 Ám	0.062 in	1.57 mm	2.54 mm	0.1 in	4	Gold	8	125 °C	-65 ░C	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Dual	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm
Sullins Connector Solutions EBC04DRAN-S268	Female	Through Hole Right Angle	2	Non Specified - Dual Edge	Solder	10 Áin	0.25 Ám			2.54 mm	0.1 in	4	Gold	8	125 °C	-65 ░C	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Dual				Full Bellows
Sullins Connector Solutions EBC04MMBN	Male	Through Hole Right Angle	2	Fits Female Edgecards	Solder	10 Áin	0.25 Ám	0.062 in	1.57 mm	2.54 mm	0.1 in	4	Gold	8	125 °C	-65 ░C	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Dual
Sullins Connector Solutions EBC04MMJD	Male	Through Hole Right Angle	2	Fits Female Edgecards	Solder	10 Áin	0.25 Ám	0.062 in	1.57 mm	2.54 mm	0.1 in	4	Gold	8	125 °C	-65 ░C	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Dual	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm
Sullins Connector Solutions EBC04MMDD	Male	Through Hole Right Angle	2	Fits Female Edgecards	Solder	10 Áin	0.25 Ám	0.062 in	1.57 mm	2.54 mm	0.1 in	4	Gold	8	125 °C	-65 ░C	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Dual	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm
Sullins Connector Solutions EBC04DREN-S268	Female	Free Hanging (In-Line)	2	Non Specified - Dual Edge	Solder Eyelet(s)	10 Áin	0.25 Ám			2.54 mm	0.1 in		Gold	8	125 °C	-65 ░C	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Dual				Full Bellows
Sullins Connector Solutions EBC04MMWD	Male	Through Hole	2	Fits Female Edgecards	Solder	10 Áin	0.25 Ám	0.062 in	1.57 mm	2.54 mm	0.1 in	4	Gold	8	125 °C	-65 ░C	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Dual	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm
Sullins Connector Solutions EBC04MMWN	Male	Through Hole	2	Fits Female Edgecards	Solder	10 Áin	0.25 Ám	0.062 in	1.57 mm	2.54 mm	0.1 in	4	Gold	8	125 °C	-65 ░C	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Dual

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 2.55

Description

General part information

EBC04 Series

8 Position Male Connector Fits Female Edgecards Gold 0.100" (2.54mm)
