BM10B-SRSS-TBT
ActiveJST Sales America Inc.

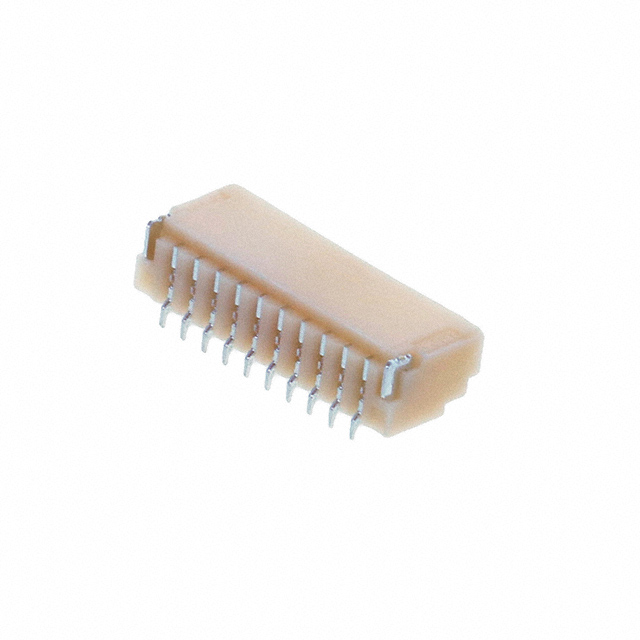

CONN HEADER SMD 10POS 1MM
Deep-Dive with AI
Search across all available documentation for this part.
BM10B-SRSS-TBT
ActiveJST Sales America Inc.
CONN HEADER SMD 10POS 1MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM10B-SRSS-TBT |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.167 in |
| Insulation Height | 4.25 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.38 | |
| 10 | $ 1.16 | |||
| 100 | $ 1.04 | |||
| 500 | $ 0.85 | |||
| Tape & Reel (TR) | 1500 | $ 0.71 | ||
| 3000 | $ 0.69 | |||
| 7500 | $ 0.66 | |||
| 10500 | $ 0.63 | |||
| 15000 | $ 0.62 | |||
Description
General part information
BM10B-SR Series
Connector Header Surface Mount 10 position 0.039" (1.00mm)
