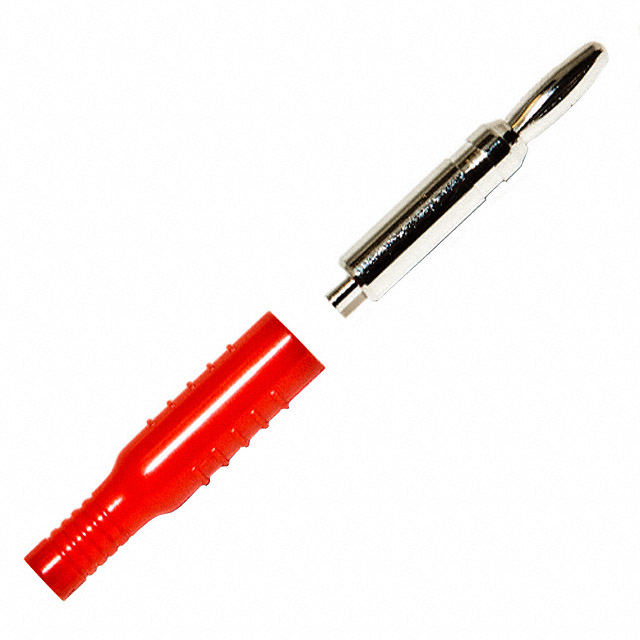

BU-P5169-2
ActiveMueller Electric Co
CONN BANANA PLUG RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BU-P5169-2
ActiveMueller Electric Co
CONN BANANA PLUG RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-P5169-2 |
|---|---|
| Body Material | Polyvinyl Chloride (PVC) |
| Color | Red |
| Contact Finish | Nickel |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Fully Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -70 °C |
| Plug/Mating Plug Diameter | Standard Banana |
| Termination | Crimp or Solder |
| Type | Banana Plug |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.68 | |
| 10 | $ 3.06 | |||
| 100 | $ 2.91 | |||
| 500 | $ 2.82 | |||
| 1000 | $ 2.68 | |||
Description
General part information
BU-P5169 Series
Banana Plug Connector Standard Banana Crimp or Solder Red
Documents
Technical documentation and resources
