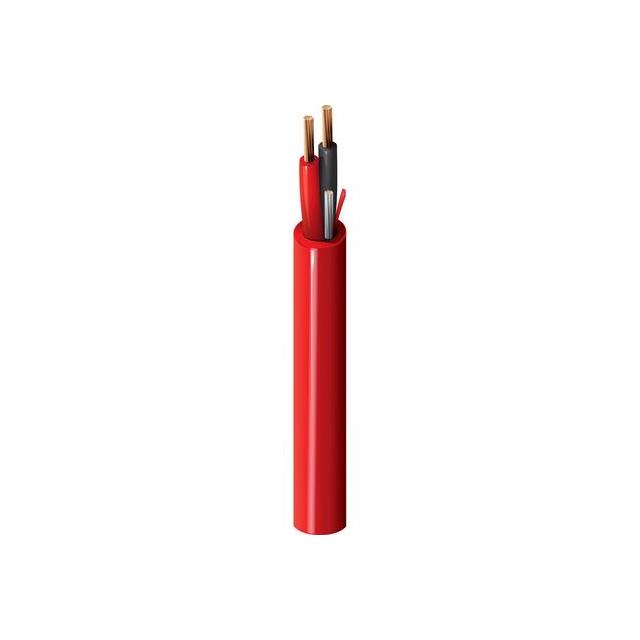

5000UL 0021000

Active

Belden Inc.

CABLE 2COND 12AWG RED

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 12AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	5000UL 0021000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	25
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	6.6 mm
Jacket (Insulation) Diameter [diameter]	0.26 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Ratings	UL Style FPLR
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	12 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Wire Gauge	Number of Conductors	Ratings	Conductor Material	Features	Cable Type	Jacket Color	Jacket (Insulation) Material	Length	Length	Usage	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 5000UL 0021000	6.6 mm	0.26 in	Polypropylene (PP)	12 AWG	2	UL Style FPLR	Copper Bare	Rip Cord	Multi-Conductor	Red	Poly-Vinyl Chloride (PVC) Riser	1000 ft	304.8 m	Alarm Safety	300 V	0.432 mm	0.017 in	19	25
Belden Inc. 5000UL 002U1000	6.6 mm	0.26 in	Polypropylene (PP)	12 AWG	2	UL Style FPLR	Copper Bare	Rip Cord	Multi-Conductor	Red	Poly-Vinyl Chloride (PVC) Riser	1000 ft	304.8 m	Alarm Safety	300 V	0.432 mm	0.017 in	19	25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.61

General part information

2 Conductor Multi-Conductor Cable Red 12 AWG 1000.0' (304.8m)
