1054426-1

Active

TE Connectivity AMP Connectors

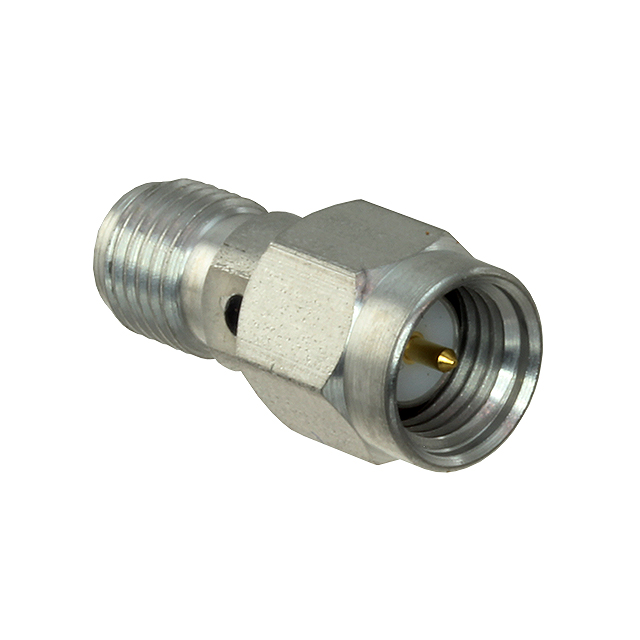

COAX ADAPT OSM TO OSM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

COAX ADAPT OSM TO OSM

Technical Specifications

Parameters and characteristics for this part

Specification	1054426-1

Adapter Series	OSM to OSM
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

COAX ADAPT OSM TO OSM

Part	Dielectric Material	Impedance	Frequency - Max [Max]	Convert To (Adapter End)	Convert From (Adapter End)	Center Contact Material	Conversion Type	Adapter Type	Center Contact Plating	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Style	Mounting Type	Adapter Series
TE Connectivity AMP Connectors 1054426-1	Polytetrafluoroethylene (PTFE)	50 Ohms	18 GHz	Female Socket, SMA Jack	SMA Plug, Male Pin	Beryllium Copper	Same Series	Plug to Jack	Gold	Stainless Steel	125 °C	-65 ░C	500	Straight	Free Hanging (In-Line)	OSM to OSM

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
