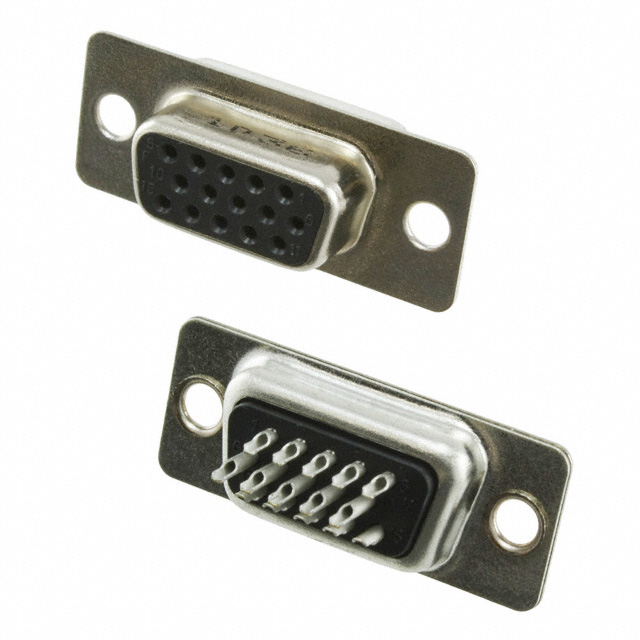

10090770-S154ALF

Active

Amphenol ICC (FCI)

CONN D-SUB HD RCPT 15P SLDR CUP

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN D-SUB HD RCPT 15P SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	10090770-S154ALF

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	2.5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Voltage Rating	250 VDC
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG

Part	Connector Type	Number of Positions	Material Flammability Rating	Connector Style	Contact Material	Shell Material, Finish	Contact Finish Thickness	Mounting Type	Contact Type	Voltage Rating	Wire Gauge [Min]	Wire Gauge [Max]	Color	Contact Finish	Flange Feature	Dielectric Material	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows
Amphenol ICC (FCI) 10090770-S154ALF	Receptacle Female Sockets	15	UL94 V-0	D-Sub High Density	Copper Alloy	Nickel Plated Steel	Flash	Free Hanging (In-Line)	Signal	250 VDC	24 AWG	28 AWG	Black	Gold	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2.5 A	DE E	1	High Density	105 ░C	-55 °C	3
