LOW-VOLTAGE 24-BIT BUS EXCHANGE SWITCH
74CBTLV16212PAG
ObsoleteRenesas Electronics Corporation
LOW-VOLTAGE 24-BIT BUS EXCHANGE SWITCH
Description
General part information
74CBTLV16212 Series

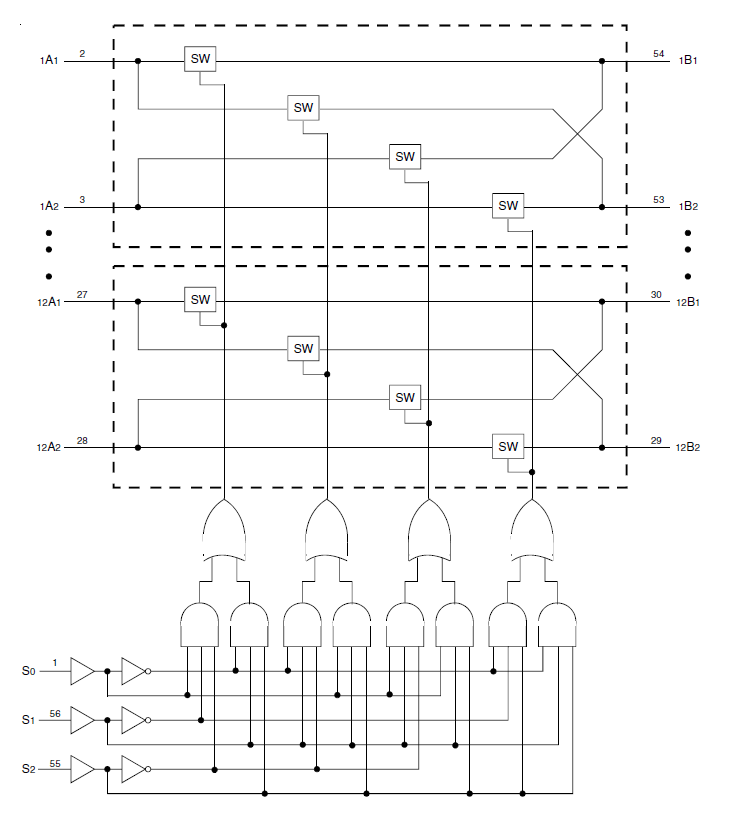

The 74CBTLV16212 provides a set of 24 high-speed switches for bus exchanging and switching with low ON resistance, resulting in under 250ps propagation delay through the switch. The 74CBTLV16212 operates as a single 24-bit bus switch or as a 12-bit bus exchanger. The 74CBTLV16212 operates at -40C to +85C
Technical Specifications
Parameters and characteristics for this part
| Specification | 74CBTLV16212PAG |
|---|---|
| Circuit | 12 x 2:2 |
| Independent Circuits | 1 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Length | 0.24 in |
| Package Name | 56-TSSOP, 56-TFSOP |
| Package Width | 6.1 mm |
| Type | Bus FET Exchange Switch |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.3 V |
| Voltage Supply Source | Single Supply |
