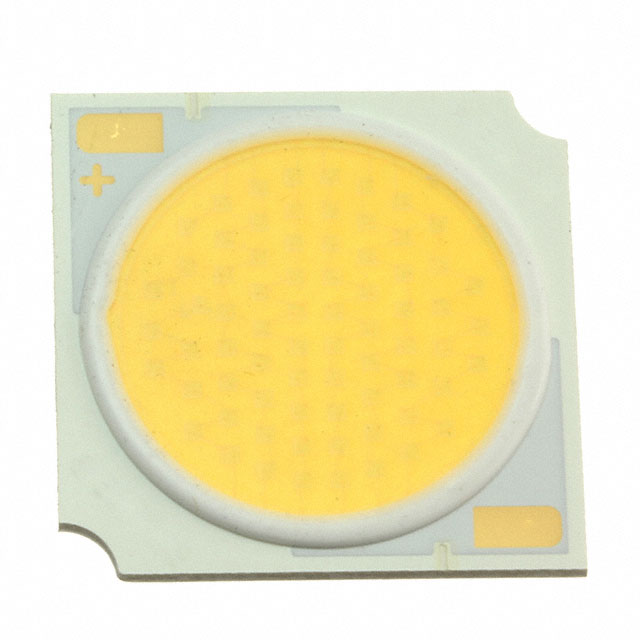

CLU044-1212B8-32GV1F6

Obsolete

Citizen

LED COB WARM WHT SQUARE

Search across all available documentation for this part.

Obsolete

Citizen

LED COB WARM WHT SQUARE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) - White, Warm Square

Technical documentation and resources

No documents available

Specification	CLU044-1212B8-32GV1F6	CLU044 Series

Color	White, Warm	Pink, White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	95	95
Current - Max [Max]	2.16 A	2.16 A
Current - Test	1.08 A	1.08 A
Height [z]	1.4 mm	1.4 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	22 mm	22 mm
Lumens/Watt @ Current - Test	102 lm/W	64 - 102 lm/W
Luminous Flux @ Current/Temperature	3948 lm	2632 - 3948 lm
Size / Dimension [x]	28 mm	28 mm
Size / Dimension [y]	28 mm	28 mm
Type	Chip On Board (COB)	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	35.7 V	35.7 V

Part	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Lens Type	Current - Test	Height [z]	Light Emitting Surface (LES) [diameter]	Color	Type	Voltage - Forward (Vf) (Typ)	Configuration	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)
Citizen CLU044-1212B8-LPGV1F7	2632 lm	68 lm/W	Flat	1.08 A	1.4 mm	22 mm	Pink	Chip On Board (COB)	35.7 V	Square	2.16 A	28 mm	28 mm
Citizen CLU044-1212B8-32GV1F6	3948 lm	102 lm/W	Flat	1.08 A	1.4 mm	22 mm	Warm, White	Chip On Board (COB)	35.7 V	Square	2.16 A	28 mm	28 mm	95
Citizen CLU044-1812B8-LPGV1F7	3682 lm	64 lm/W	Flat	1.08 A	1.4 mm	22 mm	Pink	Chip On Board (COB)		Square	2.16 A	28 mm	28 mm
