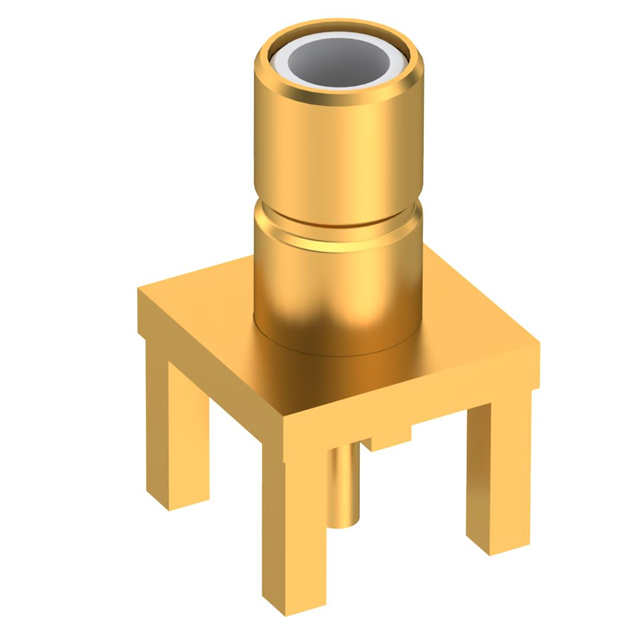

2009-1511-050

Active

Radiall USA, Inc.

SMB M STR BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB M STR BHD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2009-1511-050	2009-1511 Series

Body Finish	Gold	Gold
Body Material	Brass	Brass
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	SMB	SMB
Connector Type	Male Pin, Jack	Male Pin, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Through Hole	Through Hole
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder

SMB M STR BHD

Part	Fastening Type	Body Finish	Body Material	Mating Cycles	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Number of Ports	Dielectric Material	Contact Termination	Frequency - Max [Max]	Housing Color	Mounting Type	Connector Style	Shield Termination	Center Contact Material	Connector Type
Radiall USA, Inc. 2009-1511-050	Snap-On	Gold	Brass	500	50 Ohms	-65 ░C	165 °C	Gold	1	Polytetrafluoroethylene (PTFE)	Solder	4 GHz	Gold	Through Hole	SMB	Solder	Brass	Jack, Male Pin
Radiall USA, Inc. 2009-1511-000	Snap-On	Gold	Brass	500	50 Ohms	-65 ░C	165 °C	Gold	1	Polytetrafluoroethylene (PTFE)	Solder	4 GHz	Gold	Through Hole	SMB	Solder	Brass	Jack, Male Pin
Radiall USA, Inc. 2009-1511-016	Snap-On	Gold	Brass	500	50 Ohms	-65 ░C	165 °C	Gold	1	Polytetrafluoroethylene (PTFE)	Solder	4 GHz	Gold	Through Hole	SMB	Solder	Brass	Jack, Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Jack, Male Pin 50 Ohms Through Hole Solder
