AO4616L_103

Obsolete

Alpha & Omega Semiconductor Inc.

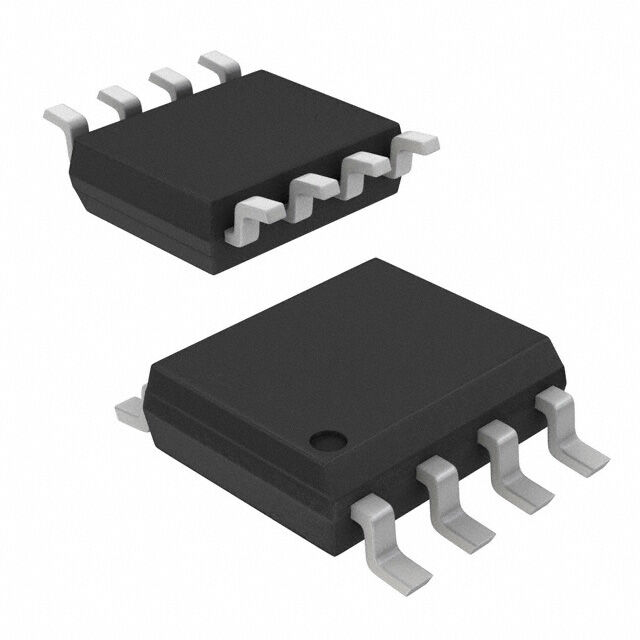

MOSFET N/P-CH 30V 8.1A 8SOIC

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N/P-CH 30V 8.1A 8SOIC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AO4616L_103	AO461 Series

Configuration	N and P-Channel	N and P-Channel
Current - Continuous Drain (Id) @ 25°C	8.1 A	7 - 8.1 A
Current - Continuous Drain (Id) @ 25°C	7.1 A	7.1 A
Drain to Source Voltage (Vdss)	30 V	30 - 40 V
FET Feature	-	Logic Level Gate
Gate Charge (Qg) (Max) @ Vgs	19.2 nC	12 - 19.2 nC
Gate Charge (Qg) (Max) @ Vgs	30.9 nC	30.9 nC
Input Capacitance (Ciss) (Max) @ Vds	1573 pF, 1250 pF	415 - 1573 pF
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	8-SOIC	8-SOIC
Package / Case [x]	0.154 in	0.154 in
Package / Case [y]	3.9 mm	3.9 mm
Power - Max [Max]	2 W	2 W
Rds On (Max) @ Id, Vgs	25 mOhm, 20 mOhm	20 - 25 mOhm
Rds On (Max) @ Id, Vgs	-	19 mOhm
Supplier Device Package	8-SOIC	8-SOIC
Technology	MOSFET (Metal Oxide)	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	3 V, 2.7 V	2.4 - 3 V

MOSFET N/P-CH 30V 8.1A 8SOIC

Part	Technology	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Vgs(th) (Max) @ Id	Configuration	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs	Power - Max [Max]	FET Feature	Rds On (Max) @ Id, Vgs [Max]
Alpha & Omega Semiconductor Inc. AO4616L_103	MOSFET (Metal Oxide)	Surface Mount	-55 °C	150 °C	8.1 A	7.1 A	8-SOIC	8-SOIC	3.9 mm	0.154 in	2.7 V, 3 V	N and P-Channel	1250 pF, 1573 pF	30 V	19.2 nC	30.9 nC	20 mOhm, 25 mOhm	2 W
Alpha & Omega Semiconductor Inc. AO4618	MOSFET (Metal Oxide)	Surface Mount	-55 °C	150 °C	7 A, 8 A		8-SOIC	8-SOIC	3.9 mm	0.154 in	2.4 V	N and P-Channel	415 pF	40 V	12 nC			2 W	Logic Level Gate	19 mOhm
