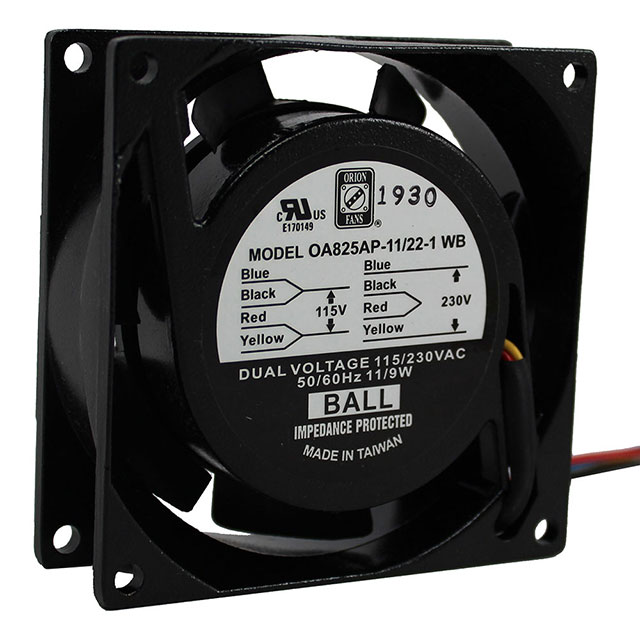

OA825AP-11/22-1WB

Active

Orion Fans

AC FAN, BALL, 80MM, 3000RPM, 115V/230V ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

OA825AP-11/22-1WB

Active

Orion Fans

AC FAN, BALL, 80MM, 3000RPM, 115V/230V ROHS COMPLIANT: YES

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA825AP-11/22-1WB

Air Flow	25 CFM
Air Flow	0.7 mł/min
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Dual Voltage
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	28 dB
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	9 W
RPM	3000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.21 in H2O
Static Pressure	52.3 Pa
Termination	4 Wire Leads
Voltage - Rated [Max]	230 VAC
Voltage - Rated [Min]	115 VAC
Voltage Range [Max]	260 VAC
Voltage Range [Min]	80 VAC

OA825AP Series

Part	Voltage Range [Min]	Voltage Range [Max]	Static Pressure	Static Pressure	Lifetime @ Temp.	Termination	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow	RPM	Noise	Material - Frame	Voltage - Rated	Approval Agency	Material - Blade	Power (Watts)	Voltage - Rated [Max]	Voltage - Rated [Min]	Features
Orion Fans OA825AP-11-2TB	80 VAC	130 VAC	0.14 in H2O	34.9 Pa	60000 Hrs	2 Terminals	Tubeaxial	80 C	80 °C	-20 °C	-20 C	259.91 g	0.573 lb	Ball	80 mm	80 mm	18 CFM	0.504 m³/min	2300 RPM	24 dB	Aluminum	115 VAC	cURus TUV	Polybutylene Terephthalate (PBT)	6 W
Orion Fans OA825AP-11-2WB	80 VAC	130 VAC	0.14 in H2O	34.9 Pa	60000 Hrs	2 Wire Leads	Tubeaxial	80 C	80 °C	-20 °C	-20 C	259.91 g	0.573 lb	Ball	80 mm	80 mm	18 CFM	0.504 m³/min	2300 RPM	24 dB	Aluminum	115 VAC	cURus TUV	Polybutylene Terephthalate (PBT)	6 W
Orion Fans OA825AP-11-3WB	80 VAC	130 VAC	0.11 in H2O	27.4 Pa	60000 Hrs	2 Wire Leads	Tubeaxial	80 C	80 °C	-20 °C	-20 C	259.91 g	0.573 lb	Ball	80 mm	80 mm	16 CFM	0.448 mł/min	1900 RPM	19 dB(A)	Aluminum	115 VAC	cURus TUV	Polybutylene Terephthalate (PBT)
Orion Fans OA825AP-22-1TB	160 VAC	260 VAC	0.21 in H2O	52.3 Pa	60000 Hrs	2 Terminals	Tubeaxial	80 C	80 °C	-20 °C	-20 C	259.91 g	0.573 lb	Ball	80 mm	80 mm	25 CFM	0.7 mł/min	3000 RPM	25 dB(A)	Aluminum	230 VAC	cURus TUV	Polybutylene Terephthalate (PBT)	9 W
Orion Fans OA825AP-11-1WB	80 VAC	130 VAC	0.21 in H2O	52.3 Pa	60000 Hrs	2 Wire Leads	Tubeaxial	80 C	80 °C	-20 °C	-20 C	259.91 g	0.573 lb	Ball	80 mm	80 mm	25 CFM	0.7 mł/min	3000 RPM	28 dB	Aluminum	115 VAC	cURus TUV	Polybutylene Terephthalate (PBT)	9 W
Orion Fans OA825AP-22-2WB	160 VAC	260 VAC	0.14 in H2O	34.9 Pa	60000 Hrs	2 Wire Leads	Tubeaxial	80 C	80 °C	-20 °C	-20 C	259.91 g	0.573 lb	Ball	80 mm	80 mm	18 CFM	0.504 m³/min	2300 RPM	18 dB(A)	Aluminum	230 VAC	cURus TUV	Polybutylene Terephthalate (PBT)	6 W
Orion Fans OA825AP-11/22-1WB	80 VAC	260 VAC	0.21 in H2O	52.3 Pa	60000 Hrs	4 Wire Leads	Tubeaxial	80 C	80 °C	-20 °C	-20 C			Ball	80 mm	80 mm	25 CFM	0.7 mł/min	3000 RPM	28 dB	Aluminum			Polybutylene Terephthalate (PBT)	9 W	230 VAC	115 VAC	Dual Voltage
Orion Fans OA825AP-11-1TB	80 VAC	130 VAC	0.21 in H2O	52.3 Pa	60000 Hrs	2 Terminals	Tubeaxial	80 C	80 °C	-20 °C	-20 C	259.91 g	0.573 lb	Ball	80 mm	80 mm	25 CFM	0.7 mł/min	3000 RPM	28 dB	Aluminum	115 VAC	cURus TUV	Polybutylene Terephthalate (PBT)	9 W
Orion Fans OA825AP-22-1WB	160 VAC	260 VAC	0.21 in H2O	52.3 Pa	60000 Hrs	2 Wire Leads	Tubeaxial	80 C	80 °C	-20 °C	-20 C	259.91 g	0.573 lb	Ball	80 mm	80 mm	25 CFM	0.7 mł/min	3000 RPM	25 dB(A)	Aluminum	230 VAC	cURus TUV	Polybutylene Terephthalate (PBT)	9 W
Orion Fans OA825AP-22-2TB	160 VAC	260 VAC	0.14 in H2O	34.9 Pa	60000 Hrs	2 Terminals	Tubeaxial	80 C	80 °C	-20 °C	-20 C	259.91 g	0.573 lb	Ball	80 mm	80 mm	18 CFM	0.504 m³/min	2300 RPM	18 dB(A)	Aluminum	230 VAC	cURus TUV	Polybutylene Terephthalate (PBT)	6 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 23.12
		10	$ 21.11
		40	$ 20.31
		80	$ 18.97
		120	$ 17.50
		280	$ 17.24
		520	$ 17.10
Newark	Each	1	$ 23.48
		5	$ 22.90
		10	$ 22.31
		25	$ 21.13
		50	$ 19.96
		100	$ 18.79

Description

General part information

OA825AP Series

Fan Tubeaxial 115/230VAC Square - 80mm L x 80mm H Ball 25.0 CFM (0.700m³/min) 4 Wire Leads
