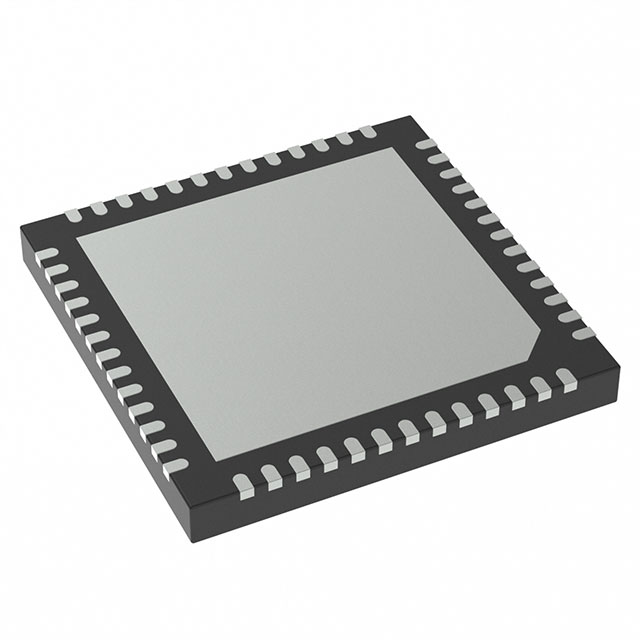

TMC603A-LA
ActiveAnalog Devices Inc./Maxim Integrated
IC MOTOR DRIVER 3.3V-5V 52QFN
Deep-Dive with AI
Search across all available documentation for this part.
TMC603A-LA
ActiveAnalog Devices Inc./Maxim Integrated
IC MOTOR DRIVER 3.3V-5V 52QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC603A-LA | TMC603 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Function | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management |
| Interface | PWM | PWM |
| Motor Type - AC, DC | Brushless DC (BLDC) | Brushless DC (BLDC) |
| Motor Type - Stepper | - | Multiphase |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) |
| Package / Case | 52-VFQFN Exposed Pad | 52-VFQFN Exposed Pad |
| Supplier Device Package | 52-QFN (8x8) | 52-QFN (8x8) |
| Technology | Power MOSFET | Power MOSFET |
| Voltage - Load [Max] | 50 V | 50 V |
| Voltage - Load [Min] | 12 V | 10 - 12 V |
| Voltage - Supply [Max] | 5 V | 5 - 5.25 V |
| Voltage - Supply [Min] | 3.3 V | 3.3 - 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TMC603 Series
IC MOTOR DRIVER 3.3V-5V 52QFN
| Part | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Technology | Supplier Device Package | Motor Type - Stepper | Output Configuration | Package / Case | Interface | Voltage - Load [Max] | Voltage - Load [Min] | Function | Motor Type - AC, DC | Operating Temperature [Min] | Operating Temperature [Max] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC603A-LA-X | Surface Mount | 4.75 V | 5.25 V | Power MOSFET | 52-QFN (8x8) | Multiphase | Pre-Driver - Half Bridge (3) | 52-VFQFN Exposed Pad | PWM | 50 V | 10 V | Controller - Commutation, Direction Management | Brushless DC (BLDC) | -40 °C | 125 °C | General Purpose |
Analog Devices Inc./Maxim Integrated TMC603A-LA | Surface Mount | 3.3 V | 5 V | Power MOSFET | 52-QFN (8x8) | Pre-Driver - Half Bridge (3) | 52-VFQFN Exposed Pad | PWM | 50 V | 12 V | Controller - Commutation, Direction Management | Brushless DC (BLDC) | -40 °C | 125 °C | General Purpose | |
Analog Devices Inc./Maxim Integrated TMC603A-LA-T | Surface Mount | 4.75 V | 5.25 V | Power MOSFET | 52-QFN (8x8) | Multiphase | Pre-Driver - Half Bridge (3) | 52-VFQFN Exposed Pad | PWM | 50 V | 10 V | Controller - Commutation, Direction Management | Brushless DC (BLDC) | -40 °C | 125 °C | General Purpose |
Description
General part information
TMC603 Series
Motor Driver Power MOSFET PWM 52-QFN (8x8)
