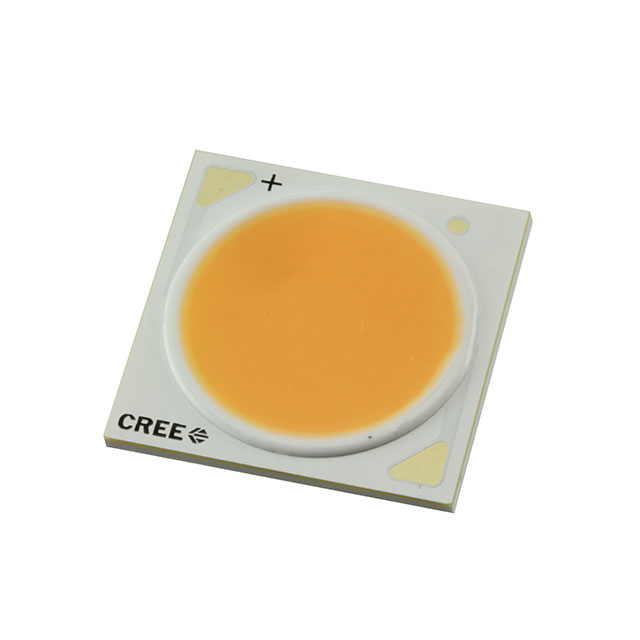

CXA1507-0000-000N0HH20E1

Active

Cree LED

LED COB XLAMP COOL WHT SQ 6500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXA1507-0000-000N0HH20E1

Active

Cree LED

LED COB XLAMP COOL WHT SQ 6500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXA1507-0000-000N0HH20E1

CCT (K)	6500 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	375 mA
Current - Test	200 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	8.9 mm
Lumens/Watt @ Current - Test	130 lm/W
Luminous Flux @ Current/Temperature	935 lm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	36 V

CXA1507 Series

...

Part	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Lens Type	Current - Max [Max]	Type	Color	Light Emitting Surface (LES) [diameter]	Temperature - Test	CRI (Color Rendering Index)	Viewing Angle	Configuration	Voltage - Forward (Vf) (Typ)	Height [z]	CCT (K)	Current - Test	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	CCT (K)
Cree LED CXA1507-0000-000N00G450H	118 lm/W	870 lm	Flat	375 mA	Chip On Board (COB)	Cool White	8.9 mm	85 °C	70	115 °	Square	37 V	1.7 mm	5000 K	200 mA
Cree LED CXA1507-0000-000N0UE227G	85 lm/W	613 lm	Flat	375 mA	Chip On Board (COB)	Warm White	8.9 mm	85 °C	90	115 °	Square	36 V	1.7 mm	2700 K	200 mA
Cree LED CXA1507-0000-000F00F440F	105 lm/W	755 lm	Flat	750 mA	Chip On Board (COB)	Neutral White	8.9 mm	85 °C	70	115 °	Square	18 V	1.7 mm	4000 K	400 mA	780 lm	730 lm
Cree LED CXA1507-0000-000N0HH20E1	130 lm/W	935 lm	Flat	375 mA	Chip On Board (COB)	Cool White	8.9 mm	85 °C	80	115 °	Square	36 V	1.7 mm	6500 K	200 mA
Cree LED CXA1507-0000-000N0UE430G	91 lm/W	658 lm	Flat	375 mA	Chip On Board (COB)	Warm White	8.9 mm	85 °C	90	115 °	Square	36 V	1.7 mm	3000 K	200 mA
Cree LED CXA1507-0000-000N00G427G	121 lm/W	870 lm	Flat	375 mA	Chip On Board (COB)	Warm White	8.9 mm	85 °C	80	115 °	Square	36 V	1.7 mm	2700 K	200 mA
Cree LED CXA1507-0000-000N0UE227F	85 lm/W	613 lm	Flat	375 mA	Chip On Board (COB)	Warm White	8.9 mm	85 °C	90	115 °	Square	36 V	1.7 mm	2700 K	200 mA			4-Step MacAdam Ellipse
Cree LED CXA1507-0000-000F00H240H	130 lm/W	935 lm	Flat	750 mA	Chip On Board (COB)	Neutral White	8.9 mm	85 °C	80	115 °	Square	18 V	1.7 mm	4000 K	400 mA
Cree LED CXA1507-0000-000F00G427G	121 lm/W	870 lm	Flat	750 mA	Chip On Board (COB)	Warm White	8.9 mm	85 °C	80	115 °	Square	18 V	1.7 mm	2700 K	400 mA
Cree LED CXA1507-0000-000N00G20E3	110 lm/W	810 lm	Flat	375 mA	Chip On Board (COB)	Cool White	8.9 mm	85 °C	70	115 °	Square	37 V	1.7 mm	5000 K	200 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 2.06

Description

General part information

CXA1507 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXA1507 White, Cool Square
