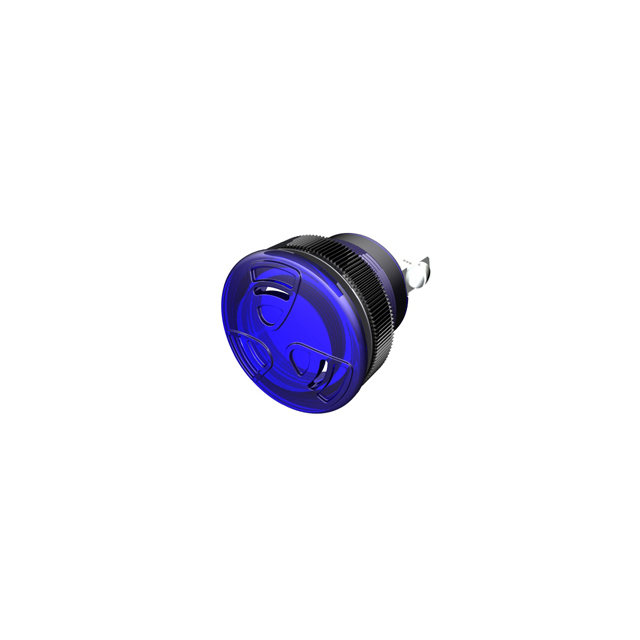

TLHW-88B-930-SS
ActiveFloyd Bell Inc
BUZZER 33.02MM PNL MNT
TLHW-88B-930-SS
ActiveFloyd Bell Inc
BUZZER 33.02MM PNL MNT
Description
General part information
TLHW-88B Series
Buzzers Indicator, Internally Driven 50 ~ 110mA 2.9kHz 103dB @ 30V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | TLHW-88B-930-SS |
|---|---|
| Approval Agency | UL, UR |
| Current - Supply (Max) | 110 mA |
| Current - Supply (Min) | 50 mA |
| Driver Circuitry | Indicator, Internally Driven |
| Frequency | 2.9 kHz |
| Height - Seated (Max) | 1.18 in |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Input Type | DC |
| Mounting Type | Panel Mount |
| Operating Mode | Slow, Warble |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Size / Dimension Diameter | 1.3 in |
| Sound Pressure Level (SPL) | 103 dB |
| Termination | Screw Terminal, Quick Connect Tab - (6.35mm) |
| Termination Probe Tip OD | 0.25 in |
| Voltage Range (Max) | 30 VDC |
| Voltage Range (Min) | 9 V |
