3RH22441 Series

Part	Release Time	Coil Power	Operate Time	Features	Coil Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Must Operate Voltage	Mounting Type	Pin Count	Contact Form	Switching Voltage AC (Max)	Contact Rating (Current)
Siemens 3RH22441AP60	15 ms	37 VA	33 ms	Auxiliary Contacts	240 V	-25 °C	60 °C	Screw Terminal	204 VAC	Chassis Mount DIN Rail	8	4 A B Form PST-4NO/4NC	690 VAC	10 A

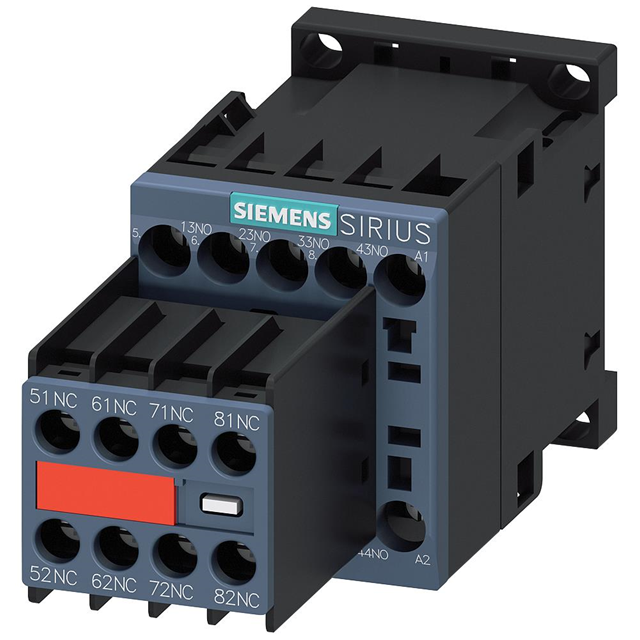

Siemens 3RH22441BF40	13 ms	4 W	100 ms	Auxiliary Contacts	110 V	-25 °C	60 °C	Screw Terminal	88 V	Chassis Mount DIN Rail	8	4 A B Form PST-4NO/4NC	690 VAC	10 A
Siemens 3RH22441AP00	15 ms	37 VA	33 ms	Auxiliary Contacts	230 VDC	-25 °C	60 °C	Screw Terminal	195.5 VDC	Chassis Mount DIN Rail	8	4 A B Form PST-4NO/4NC	690 VAC	10 A
