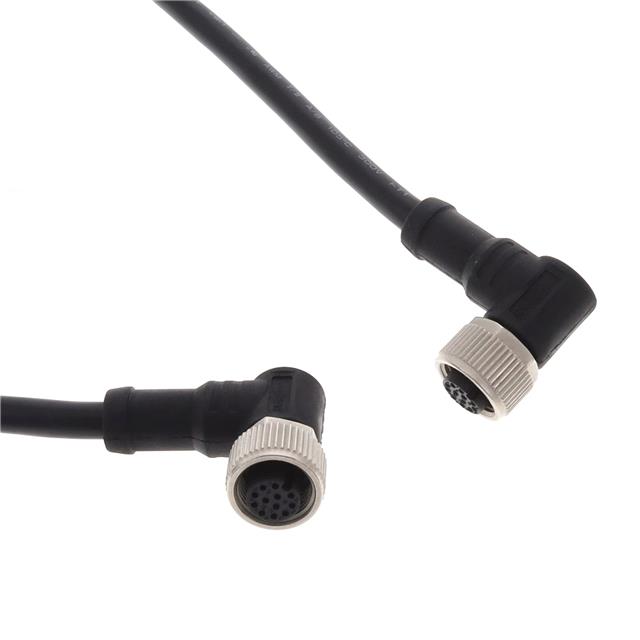

M12A12FR-12AFR-SDA05
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 1.5A, 12 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE-TO-RIGHT ANGLE, SCRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M12A12FR-12AFR-SDA05
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 1.5A, 12 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE-TO-RIGHT ANGLE, SCRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A12FR-12AFR-SDA05 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions [custom] | 12 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug, Right Angle |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 12 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Shell Size - Insert | M12 |
| 2nd Connector Type | Plug, Right Angle |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection | IP68, IP69K |
| Length [x] | 1.64 ft |
| Length [x] | 500 mm |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M12A12FR Series
Cable Assembly 1.64' (500.00mm)
