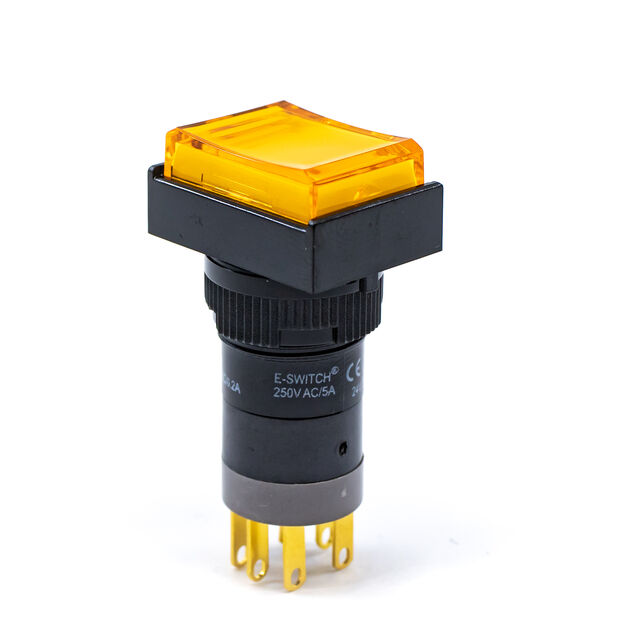

Specification	P16EET11KYELYEL

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	SPDT
Color	Yellow
Color - Actuator/Cap	Yellow
Current Rating	8 A, 6 A
Electrical Life (Cycles)	50000
Illumination Type	LED
Illumination Voltage (Nominal)	24 V
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Diameter	16 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-On
Termination Style	Quick Connect
Type	Standard, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

P16EET11 Series

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Voltage Rating - DC	Operating Temperature (Min)	Operating Temperature (Max)	Circuit	Actuator Marking	Type	Mounting Type	Quick Connect Size (0.110")	Termination Style	Illumination Voltage (Nominal)	Actuator Type	Panel Cutout Diameter	Panel Cutout Shape	Current Rating	Illumination Type	Color	Voltage Rating - AC	Color - Actuator/Cap	Switch Function
E-Switch P16EET11BRED	50000	100000 Cycles	24 V	-20 °C	55 °C	SPDT	No Marking	Illuminated Standard	Front Panel Mount	0.11 in	Quick Connect	14 VAC/DC	Button Rectangular	16 mm	Circular	6 A 8 A	Incandescent	Red	125 V	Red	On-On
E-Switch P16EET11FGRNGRN	50000	100000 Cycles	24 V	-20 °C	55 °C	SPDT	No Marking	Illuminated Standard	Front Panel Mount	0.11 in	Quick Connect	110 VAC	Button Rectangular	16 mm	Circular	6 A 8 A	Neon	Green	125 V	Green	On-On
E-Switch P16EET11KYELYEL	50000	100000 Cycles	24 V	-20 °C	55 °C	SPDT	No Marking	Illuminated Standard	Front Panel Mount	0.11 in	Quick Connect	24 V	Button Rectangular	16 mm	Circular	6 A 8 A	LED	Yellow	125 V	Yellow	On-On
E-Switch P16EET11BWHT	50000	100000 Cycles	24 V	-20 °C	55 °C	SPDT	No Marking	Illuminated Standard	Front Panel Mount	0.11 in	Quick Connect	14 VAC/DC	Button Rectangular	16 mm	Circular	6 A 8 A	Incandescent	White	125 V	White	On-On
E-Switch P16EET11BGRN	50000	100000 Cycles	24 V	-20 °C	55 °C	SPDT	No Marking	Illuminated Standard	Front Panel Mount	0.11 in	Quick Connect	14 VAC/DC	Button Rectangular	16 mm	Circular	6 A 8 A	Incandescent	Green	125 V	Green	On-On
