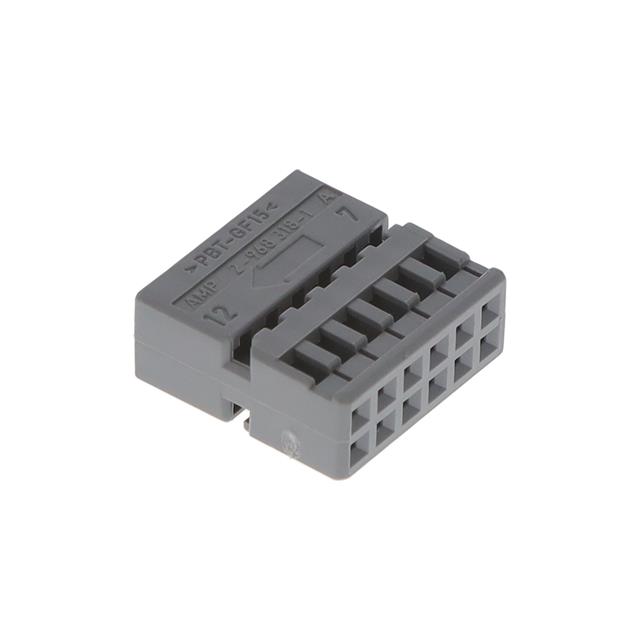

2-968318-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 12POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-968318-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 12POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-968318-1 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.46 | |
| 10 | $ 0.45 | |||
| 25 | $ 0.44 | |||
| 50 | $ 0.43 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.34 | |||
| 500 | $ 0.33 | |||
968318 Series
CONN RCPT HSG 12POS 2.54MM
| Part | Note | Connector Type | Pitch [x] | Pitch [x] | Contact Type | Number of Positions | Contact Termination | Color | Row Spacing [x] | Row Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Mounting Type | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-968318-1 | Contacts Not Included | Receptacle | 2.54 mm | 0.1 in | Female Socket | 12 | Crimp | Gray | 0.1 in | 2.54 mm | -40 °C | 120 °C | 2 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled |
Description
General part information
968318 Series
12 Rectangular Connectors - Housings Receptacle Gray 0.100" (2.54mm)
