Specification	331178

Body Finish	Silver
Body Material	Copper Alloy
Cable Group	188, RG-174
Cable Group Current Rating	188
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max	2.5 GHz
Housing Color	Silver
Impedance	50 Ohm
Includes	Contact, Gasket, Connector, Ferrule
Includes Total Count	4 pcs
Mating Cycles	500 cycles
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

3311 Series

Part	Body Material	Includes	Includes Total Count	Dielectric Material	Center Contact Plating	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Body Finish	Cable Group	Cable Group Current Rating	Impedance	Number of Ports	Fastening Type	Shield Termination	Connector Style	Center Contact Material	Housing Color	Contact Termination	Frequency - Max	Mounting Type	Connector Type	Insulation	Contact Material	Thickness	Terminal Type	Length - Overall	Stud/Tab Size	Stud/Tab Size (Type)	Stud/Tab Size	Width - Outer Edges	Features	Contact Finish	Termination	Wire Gauge
TE Connectivity AMP Connectors 3311-254-25266
TE Connectivity AMP Connectors 331178	Copper Alloy	Connector Contact Ferrule Gasket	4 pcs	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	-55 °C	85 °C	500 V	Silver	188 RG-174	188	50 Ohm	1	Bayonet Lock	Crimp	BNC	Brass	Silver	Push On	2.5 GHz	Free Hanging (In-Line) Right Angle	Male Pin Plug

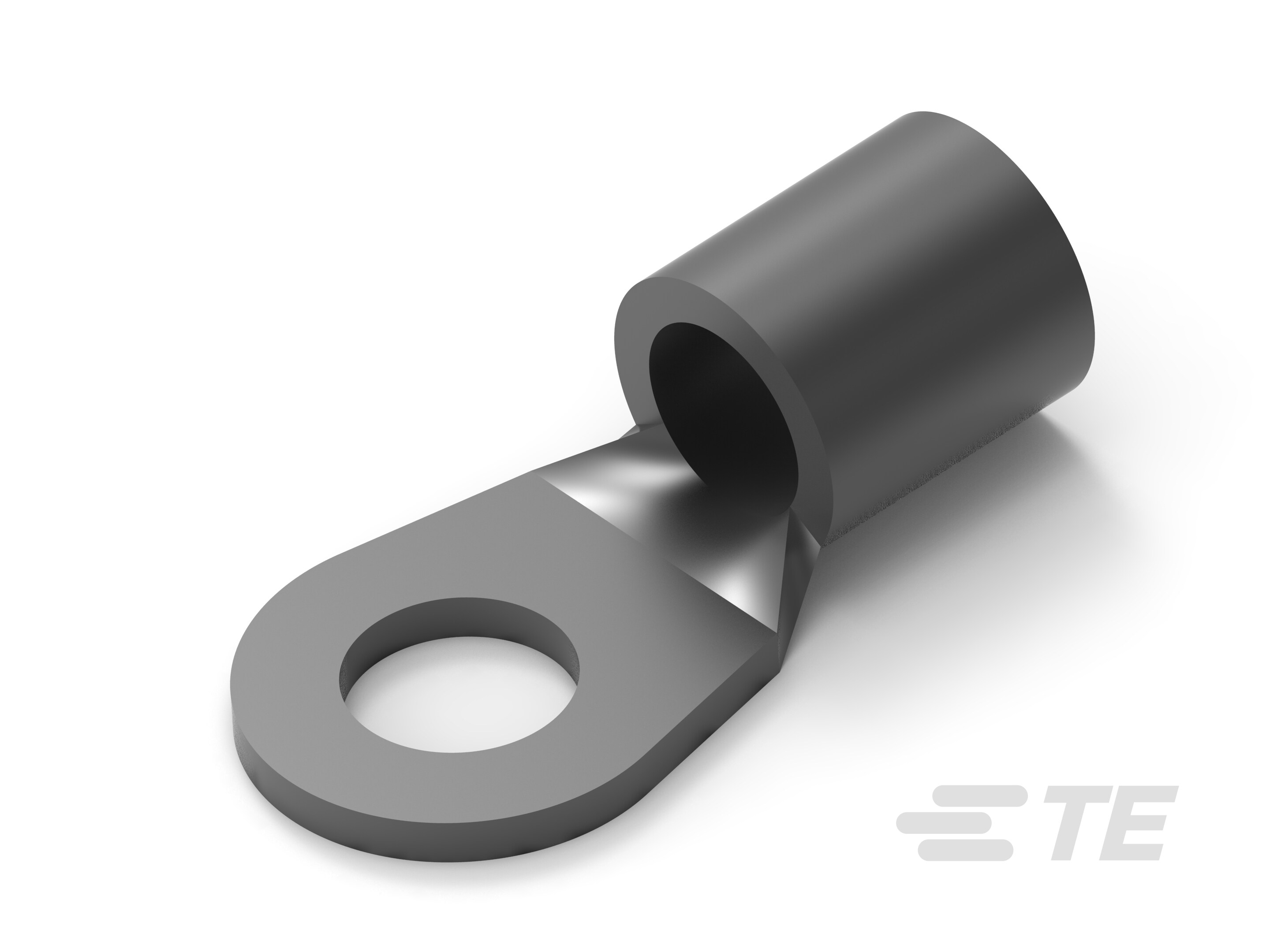

TE Connectivity AMP Connectors 33115																						Free Hanging (In-Line)		Non-Insulated	Copper	0.07 in	Circular	1.324 in	0.3125 in	Stud	16 Stud 5 Stud	0.625 in	Brazed Seam Serrated Termination	Tin	Crimp	4 AWG
TE Connectivity AMP Connectors 3311-254-25266
TE Connectivity AMP Connectors 331175	Copper	Connector Contact Ferrule Gasket	4 pcs	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	-55 °C	85 °C	500 V	Silver	58A 58B 58C RG-58		50 Ohm	1	Bayonet Lock	Crimp	BNC	Brass	Silver	Push On	2.5 GHz	Free Hanging (In-Line) Right Angle	Male Pin Plug
