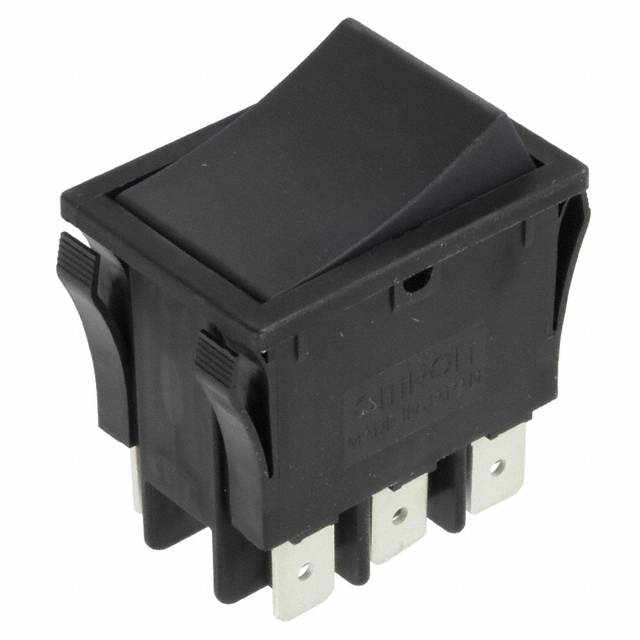

A8G-107-1-24

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPDT 20A 250V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPDT 20A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	A8G-107-1-24

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	cULus, CE
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Electrical Life	50000 Cycles
Features	Remote Reset Function
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	34.4 mm
Panel Cutout Dimensions [y]	24.4 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.110"/0.250"
Voltage Rating - AC	250 V

SWITCH ROCKER DPDT 20A 250V

Part	Color - Actuator/Cap	Circuit	Current Rating (Amps)	Actuator Type	Approval Agency	Mechanical Life	Mounting Type	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Switch Function	Actuator Marking	Termination Style	Electrical Life	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Features
Omron Electronics Inc-EMC Div A8G-107-1-24	Black	DPDT	20 A	Concave (Curved)	CE, cULus	100000 Cycles	Panel Mount, Snap-In	250 V	34.4 mm	24.4 mm	On-On	No Marking	Quick Connect - 0.110"/0.250"	50000 Cycles	55 °C	-10 °C	Remote Reset Function
