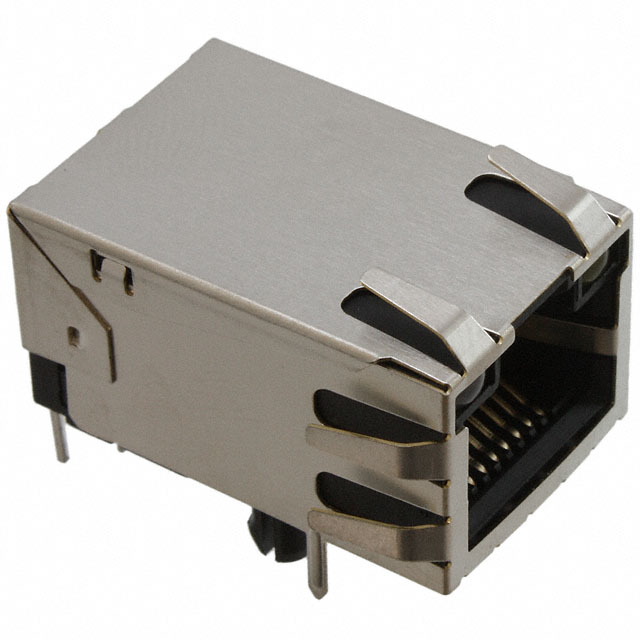

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Search across all available documentation for this part.

Active

EDAC Inc.

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100 Base-T

Technical documentation and resources

Specification	A64-113-271P521	A64-113 Series

Applications	10/100 Base-T	10/100 Base-T
Connector Type	RJ45	RJ45
Contact Finish	Gold	Gold
Contact Finish Thickness	15 µin	15 µin
Contact Finish Thickness	0.38 µm	0.38 µm
Contact Material	-	Phosphor Bronze
Height Above Board	13.4 mm	13.4 - 13.45 mm
Height Above Board	-	0.53 in
Height Above Board [z]	0.528 "	0.528 "
Housing Material	Polyester, Polybutylene Terephthalate (PBT)	Polyester, Polyamide (PA), Nylon, Polybutylene Terephthalate (PBT)
LED Color	Orange - Yellow, Green	Yellow, Green, Orange - Yellow
Mounting Type	Through Hole	Through Hole
Number of Cores per Jack	5	5
Number of Ports	1	1
Number of Rows	1	1
Operating Temperature	-	70 °C
Operating Temperature	-	0 °C
Orientation	90 °	90 °
Shield Material	-	Copper Alloy
Shielding	Shielded, EMI Finger	Shielded, EMI Finger
Tab Direction	Up	Up
Termination	Solder	Solder

Part	Shielding	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	Housing Material	Termination	Number of Rows	Number of Ports	Shield Material	Mounting Type	Contact Finish	Orientation	Tab Direction	Number of Cores per Jack	LED Color	Contact Material	Applications	Height Above Board [z]
EDAC Inc. A64-113-231N411	Shielded, EMI Finger	15 µin	0.38 µm	RJ45	70 °C	0 °C	13.45 mm	0.53 in	Nylon, Polyamide (PA), Polyester	Solder	1	1	Copper Alloy	Through Hole	Gold	90 °	Up	5	Green, Yellow	Phosphor Bronze	10/100 Base-T
EDAC Inc. A64-113-271P521	Shielded, EMI Finger	15 µin	0.38 µm	RJ45			13.4 mm		Polybutylene Terephthalate (PBT), Polyester	Solder	1	1		Through Hole	Gold	90 °	Up	5	Green, Orange - Yellow		10/100 Base-T	0.528 "
