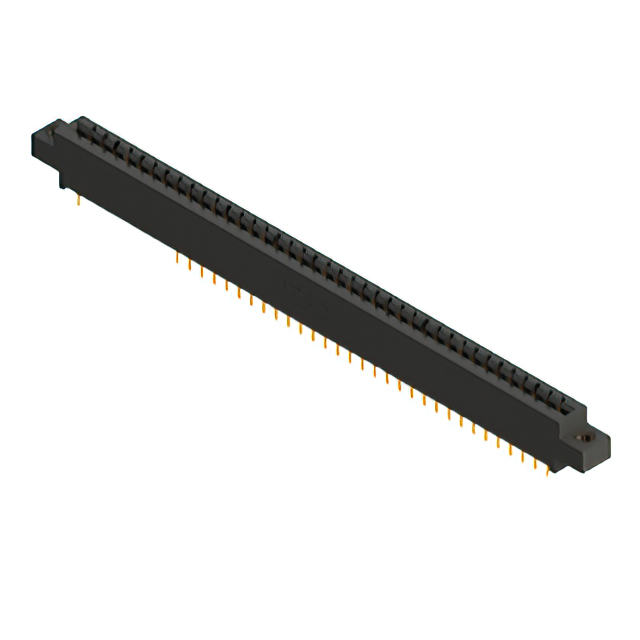

387-078-540-807

Active

EDAC Inc.

CONN EDGE DUAL FMALE 78POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	387-078-540-807

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	78
Number of Positions/Bay/Row [custom]	39
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

387-078 Series

...

Part	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Gender	Contact Type	Number of Positions/Bay/Row [custom]	Contact Finish	Contact Material	Material - Insulation	Read Out	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Pitch [x]	Pitch [x]	Number of Positions	Color	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Mounting Type	Flange Feature	Flange Feature
EDAC Inc. 387-078-520-204	2	10 Áin	0.25 Ám	Female	Cantilever	39	Gold	Copper Alloy	Polyester Thermoplastic	Dual	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	-40 °C	105 ░C	Solder	0.156 in	3.96 mm	78	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole
EDAC Inc. 387-078-541-804	2	10 Áin	0.25 Ám	Female	Cantilever	39	Gold	Copper Alloy	Polyester Thermoplastic	Dual	3.96 mm	Top Mount Opening Unthreaded	0.156 in	-40 °C	105 ░C	Wire Wrap	0.156 in	3.96 mm	78	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole
EDAC Inc. 387-078-520-268	2	10 Áin	0.25 Ám	Female	Cantilever	39	Gold	Copper Alloy	Polyester Thermoplastic	Dual		4-40 Flush Mount Threaded Insert Top Opening		-40 °C	105 ░C	Solder	0.156 in	3.96 mm	78	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole
EDAC Inc. 387-078-559-201	2	10 Áin	0.25 Ám	Female	Cantilever	39	Gold	Copper Alloy	Polyester Thermoplastic	Dual				-40 °C	105 ░C	Wire Wrap	0.156 in	3.96 mm	78	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole Right Angle
EDAC Inc. 387-078-556-858	2	10 Áin	0.25 Ám	Female	Cantilever	39	Gold	Copper Alloy	Polyester Thermoplastic	Dual		4-40 Threaded Insert Top Mount Opening		-40 °C	105 ░C	Solder	0.156 in	3.96 mm	78	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Board Edge Straddle Mount
EDAC Inc. 387-078-521-868	2	10 Áin	0.25 Ám	Female	Cantilever	39	Gold	Copper Alloy	Polyester Thermoplastic	Dual		4-40 Threaded Insert Top Mount Opening		-40 °C	105 ░C	Solder	0.156 in	3.96 mm	78	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole
EDAC Inc. 387-078-540-812	2	10 Áin	0.25 Ám	Female	Cantilever	39	Gold	Copper Alloy	Polyester Thermoplastic	Dual		Side Mount Opening Unthreaded		-40 °C	105 ░C	Wire Wrap	0.156 in	3.96 mm	78	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole	3.25 mm	0.128 in
EDAC Inc. 387-078-540-807	2	10 Áin	0.25 Ám	Female	Cantilever	39	Gold	Copper Alloy	Polyester Thermoplastic	Dual		M3 Threaded Insert Top Mount Opening		-40 °C	105 ░C	Wire Wrap	0.156 in	3.96 mm	78	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole
EDAC Inc. 387-078-559-868	2	10 Áin	0.25 Ám	Female	Cantilever	39	Gold	Copper Alloy	Polyester Thermoplastic	Dual		4-40 Threaded Insert Top Mount Opening		-40 °C	105 ░C	Wire Wrap	0.156 in	3.96 mm	78	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole Right Angle
EDAC Inc. 387-078-523-878	2	10 Áin	0.25 Ám	Female	Cantilever	39	Gold	Copper Alloy	Polyester Thermoplastic	Dual		4-40 Threaded Insert Top Mount Opening		-40 °C	105 ░C	Solder	0.156 in	3.96 mm	78	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 25.30
Newark	Each	1	$ 27.27
		100	$ 13.24
		250	$ 11.07
		500	$ 9.07
		1000	$ 6.47

Description

General part information

387-078 Series

78 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
