ActiveEDAC Inc.

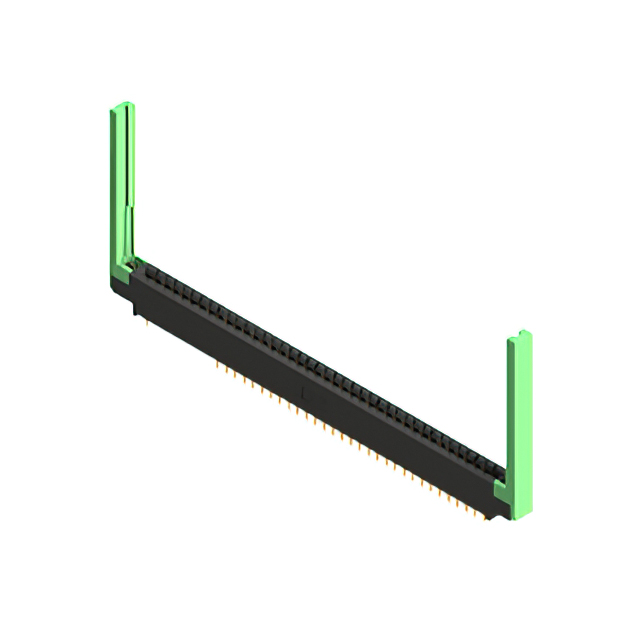

CONN EDGE DUAL FMALE 78POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-078-521-868
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 78POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-078-521-868 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 78 |
| Number of Positions/Bay/Row [custom] | 39 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
387-078 Series
...
| Part | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Gender | Contact Type | Number of Positions/Bay/Row [custom] | Contact Finish | Contact Material | Material - Insulation | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Pitch [x] | Pitch [x] | Number of Positions | Color | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Mounting Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Female | Cantilever | 39 | Gold | Copper Alloy | Polyester Thermoplastic | Dual | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | -40 °C | 105 ░C | Solder | 0.156 in | 3.96 mm | 78 | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole | ||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Female | Cantilever | 39 | Gold | Copper Alloy | Polyester Thermoplastic | Dual | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | -40 °C | 105 ░C | Wire Wrap | 0.156 in | 3.96 mm | 78 | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole | ||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Female | Cantilever | 39 | Gold | Copper Alloy | Polyester Thermoplastic | Dual | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Solder | 0.156 in | 3.96 mm | 78 | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole | ||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Female | Cantilever | 39 | Gold | Copper Alloy | Polyester Thermoplastic | Dual | -40 °C | 105 ░C | Wire Wrap | 0.156 in | 3.96 mm | 78 | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole Right Angle | |||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Female | Cantilever | 39 | Gold | Copper Alloy | Polyester Thermoplastic | Dual | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Solder | 0.156 in | 3.96 mm | 78 | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Board Edge Straddle Mount | ||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Female | Cantilever | 39 | Gold | Copper Alloy | Polyester Thermoplastic | Dual | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Solder | 0.156 in | 3.96 mm | 78 | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole | ||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Female | Cantilever | 39 | Gold | Copper Alloy | Polyester Thermoplastic | Dual | Side Mount Opening Unthreaded | -40 °C | 105 ░C | Wire Wrap | 0.156 in | 3.96 mm | 78 | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole | 3.25 mm | 0.128 in | ||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Female | Cantilever | 39 | Gold | Copper Alloy | Polyester Thermoplastic | Dual | M3 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Wire Wrap | 0.156 in | 3.96 mm | 78 | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole | ||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Female | Cantilever | 39 | Gold | Copper Alloy | Polyester Thermoplastic | Dual | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Wire Wrap | 0.156 in | 3.96 mm | 78 | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole Right Angle | ||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Female | Cantilever | 39 | Gold | Copper Alloy | Polyester Thermoplastic | Dual | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Solder | 0.156 in | 3.96 mm | 78 | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 24.27 | |
Description
General part information
387-078 Series
78 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
