ANT-LPL-FPC-100
ActiveTE Connectivity Linx
RF ANT LTE LPWA FLEX ADHES UFL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-LPL-FPC-100
ActiveTE Connectivity Linx
RF ANT LTE LPWA FLEX ADHES UFL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-LPL-FPC-100 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | LTE, 5G, 4G |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 3.55 GHz, 2.59 GHz, 2.44 GHz, 876 MHz, 2.35 GHz, 1.96 GHz, 750 MHz |
| Frequency Group | Wide Band |
| Gain | 5.2 dBi, 2.9 dBi, 5 dBi, 5.3 dBi, 6.5 dBi, 4.9 dBi, 5.6 dBi |
| Height (Max) [Max] | 0.01 in |
| Height (Max) [Max] | 0.2 mm |
| Mounting Type | Adhesive |
| Number of Bands | 7 |
| Power - Max [Max] | 2 W |
| Return Loss | -5.1 dB, -15.6 dB, -8.1 dB, -3.8 dB, -7.7 dB, -10.9 dB |
| RF Family/Standard | General ISM, Cellular |
| Termination | IPEX MHF1 (U.FL) |
| VSWR | 4.6, 2.4, 1.8, 3.5, 2.3, 1.4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.94 | |
Description
General part information
ANT-LPL Series

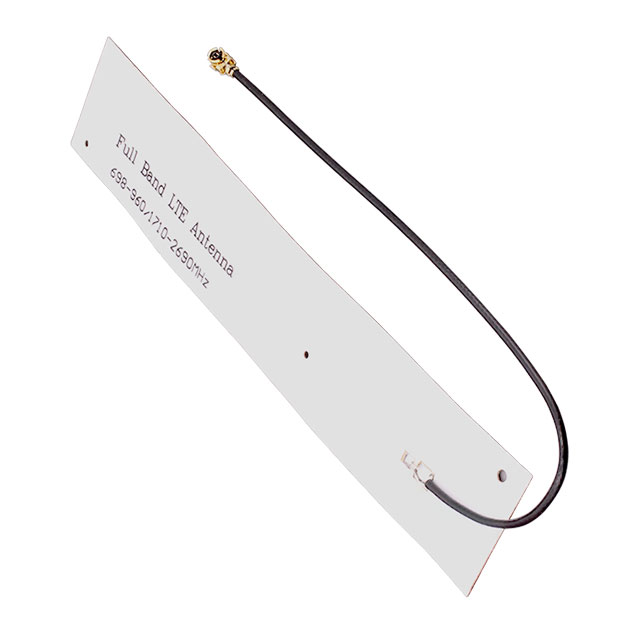

RF ANTENNA 4G, 5G, LTE Flat Patch IPEX MHF1 (U.FL) Adhesive
