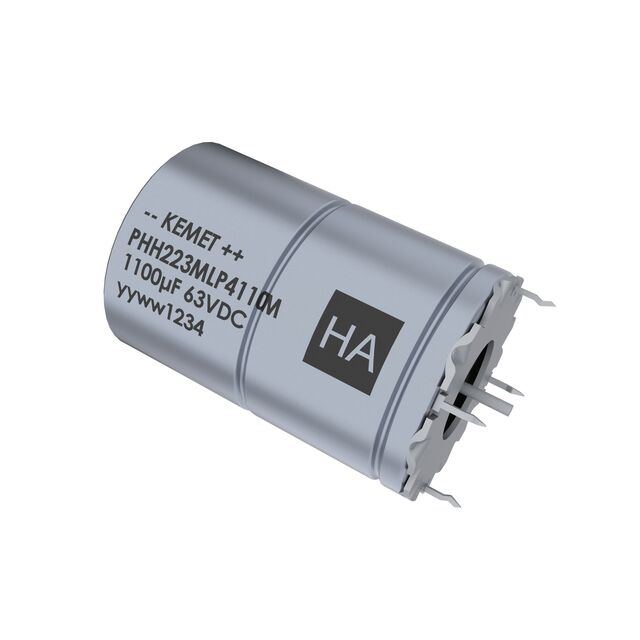

PHH223MKP3780ME4

Active

KEMET

HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, 780 ΜF, ± 20%, 63 V, RADIAL, 0.0047 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Catalogue EN

PHH223MKP3780ME4

Active

KEMET

HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, 780 ΜF, ± 20%, 63 V, RADIAL, 0.0047 OHM

Deep-Dive with AI

DocumentsDatasheet Manufacturer Catalogue EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHH223MKP3780ME4

Applications	Automotive
Capacitance	780 µF
ESR (Equivalent Series Resistance)	87 mOhm
Features	High Vibration
Height - Seated (Max) [Max]	1.445 in
Height - Seated (Max) [Max]	36.7 mm
Lead Spacing	15.24 mm
Lead Spacing	0.6 in
Lifetime @ Temp.	3000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Ratings	AEC-Q200
Ripple Current @ High Frequency	38.9 A
Ripple Current @ Low Frequency	7.78 A
Size / Dimension [diameter]	16.2 mm
Size / Dimension [diameter]	0.638 in
Tolerance	20 %
Type	Hybrid
Voltage - Rated	63 V

PHH223M Series

Part	Features	Lead Spacing	Lead Spacing	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Package / Case	Lifetime @ Temp.	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Mounting Type	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Type	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET PHH223MLL3800ME4	High Vibration	15.24 mm	0.6 in	20 %	28.7 mm	1.13 in	63 V	Radial Can	3000 Hrs	8.5 A	85 mOhm	Through Hole	800 µF	0.717 in	18.2 mm	Automotive	Hybrid	AEC-Q200	125 °C	-40 °C	42.5 A
KEMET PHH223MKP3780ME4	High Vibration	15.24 mm	0.6 in	20 %			63 V	Radial Can	3000 Hrs	7.78 A	87 mOhm	Through Hole	780 µF	0.638 in	16.2 mm	Automotive	Hybrid	AEC-Q200	125 °C	-40 °C	38.9 A	1.445 in	36.7 mm
KEMET PHH223MKL3540ME4	High Vibration	15.24 mm	0.6 in	20 %	28.7 mm	1.13 in	63 V	Radial Can	3000 Hrs	7.6 A	124 mOhm	Through Hole	540 µF	0.638 in	16.2 mm	Automotive	Hybrid	AEC-Q200	125 °C	-40 °C	38 A
KEMET PHH223MLP4110ME4	High Vibration	15.24 mm	0.6 in	20 %			63 V	Radial Can	3000 Hrs	8.8 A	62 mOhm	Through Hole	1100 µF	0.717 in	18.2 mm	Automotive	Hybrid	AEC-Q200	125 °C	-40 °C	44 A	1.445 in	36.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.12
		32	$ 10.01
		64	$ 8.90
		96	$ 8.01
		448	$ 7.40
		960	$ 6.95

Description

General part information

PHH223M Series

PHH223 is a high CV conductive polymer hybrid capacitor with outstanding electrical performance. These capacitors contain a radial crown, which allows them to be mounted in a standing position. The device has a polarized all-welded design, tinned copper wire leads, and a negative pole connected to the case. The PHH223 winding is housed in a cylindrical aluminum can with a high purity aluminum lid and high-quality rubber gasket. Low ESR is conditioned by a highly conductive polymer (PEDOT/PSS) and an all-welded design. The polymer system creates an electrical pathway between the anodic oxide layer and the cathode through a mechanical separator - paper. The PHH223 winding is impregnated with liquid electrolyte that results to self-healing features of the capacitor. Thanks to its mechanical robustness, the PHH223 is suitable for use in mobile, automotive and aircraft installations with operation up to +125°C.
