M3BBA-3440K
Active3M
IDC CABLE - MSR34A/MC34F/MSR34A
Deep-Dive with AI
Search across all available documentation for this part.
M3BBA-3440K
Active3M
IDC CABLE - MSR34A/MC34F/MSR34A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3BBA-3440K | M3BBA Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Multiple, Twisted Pair (Flat) | Ribbon, Multiple, Multiple, Twisted Pair (Flat) |
| Connector Type | Socket to Socket | Socket to Socket |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Strain Relief | Strain Relief |
| Length | - | 1.52 - 508 mm |
| Length | - | 1.67 - 5 ft |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 1.02 m | 1.02 - 914.4 mm |
| Length [x] | 3.34 ft | 1.5 - 3.34 ft |
| Number of Positions | 34 | 10 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3BBA Series
IDC CABLE - MSR10A/MC10G/MSR10A
| Part | Pitch - Connector | Pitch - Connector | Connector Type | Pitch - Cable | Pitch - Cable | Length [x] | Length [x] | Contact Finish | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Features | Cable Termination | Shielding | Number of Positions | Color | Length | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.1 in | 2.54 mm | Socket to Socket | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Gold | 2 | 0.76 Ám | 30 Áin | 10 | Strain Relief | IDC | Unshielded | |||||||
0.1 in | 2.54 mm | Socket to Socket | 0.05 " | 1.27 mm | 1.5 ft | 457.2 mm | Gold | 2 | 0.76 Ám | 30 Áin | Strain Relief | IDC | Unshielded | 16 | Multiple, Ribbon | ||||||
0.1 in | 2.54 mm | Socket to Socket | 0.05 " | 1.27 mm | Gold | 2 | 0.76 Ám | 30 Áin | 14 | Strain Relief | IDC | Unshielded | Multiple, Twisted Pair (Flat) | 508 mm | 1.67 ft | ||||||
0.1 in | 2.54 mm | Socket to Socket | 0.05 " | 1.27 mm | 3.34 ft | 1.02 m | Gold | 2 | 0.76 Ám | 30 Áin | 34 | Strain Relief | IDC | Unshielded | Multiple, Twisted Pair (Flat) | ||||||
0.1 in | 2.54 mm | Socket to Socket | 0.05 " | 1.27 mm | Gold | 2 | 0.76 Ám | 30 Áin | 50 | Strain Relief | IDC | Unshielded | Multiple, Twisted Pair (Flat) | 508 mm | 1.67 ft | ||||||
0.1 in | 2.54 mm | Socket to Socket | 0.05 " | 1.27 mm | Gold | 2 | 0.76 Ám | 30 Áin | 26 | Strain Relief | IDC | Unshielded | Multiple, Twisted Pair (Flat) | 508 mm | 1.67 ft | ||||||
0.1 in | 2.54 mm | Socket to Socket | 0.05 " | 1.27 mm | Gold | 2 | 0.76 Ám | 30 Áin | 40 | Strain Relief | IDC | Unshielded | Multiple, Twisted Pair (Flat) | 1.52 m | 5 ' | ||||||
0.1 in | 2.54 mm | Socket to Socket | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Gold | 2 | 0.76 Ám | 30 Áin | 14 | Strain Relief | IDC | Unshielded | |||||||
0.1 in | 2.54 mm | Socket to Socket | 0.05 " | 1.27 mm | 3.34 ft | 1.02 m | Gold | 2 | 0.76 Ám | 30 Áin | 60 | Strain Relief | IDC | Unshielded | Multiple, Twisted Pair (Flat) | ||||||
0.1 in | 2.54 mm | Socket to Socket | 0.05 " | 1.27 mm | Gold | 2 | 0.76 Ám | 30 Áin | 60 | Strain Relief | IDC | Unshielded | Multiple, Twisted Pair (Flat) | 508 mm | 1.67 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.18 | |
| 10 | $ 17.09 | |||
| 25 | $ 15.47 | |||
| 50 | $ 14.37 | |||
| 100 | $ 13.38 | |||
| 250 | $ 12.21 | |||
| 500 | $ 11.42 | |||
Description
General part information
M3BBA Series

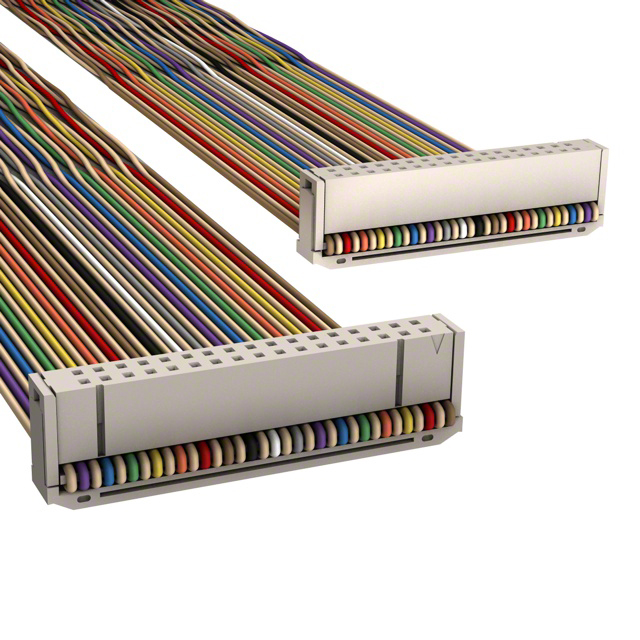

34 Position Cable Assembly Rectangular Socket to Socket 3.34' (1.02m)
Documents
Technical documentation and resources
