M3BBA-6040K

Active

IDC CABLE - MSR60A/MC60F/MSR60A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 1700 Series +1

M3BBA-6040K

Active

IDC CABLE - MSR60A/MC60F/MSR60A

Deep-Dive with AI

DocumentsDatasheet 1700 Series +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.35
		10	$ 24.98
		25	$ 22.63
		50	$ 21.05
		100	$ 19.62
		250	$ 17.93
		500	$ 16.80

Description

General part information

M3BBA Series

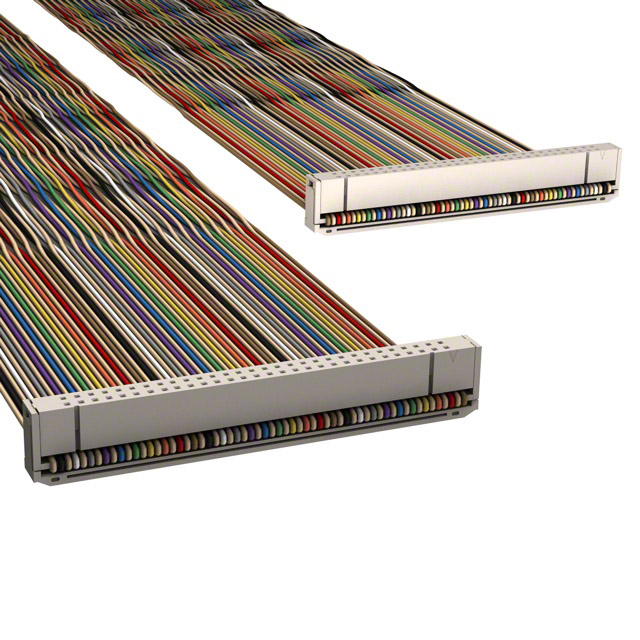

60 Position Cable Assembly Rectangular Socket to Socket 3.34' (1.02m)

Documents

Technical documentation and resources

Datasheet

1700 Series

Datasheet

891 Series Datasheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3BBA-6040K	M3BBA Series

Cable Termination	IDC	IDC
Color	Multiple, Twisted Pair (Flat)	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Socket	Socket to Socket
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Strain Relief	Strain Relief
Length	-	1.52 - 508 mm
Length	-	1.67 - 5 ft
Length	-	6 "
Length	-	0.5 '
Length [x]	1.02 m	1.02 - 914.4 mm
Length [x]	3.34 ft	1.5 - 3.34 ft
Number of Positions	60	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3BBA Series

IDC CABLE - MSR10A/MC10G/MSR10A

Part	Pitch - Connector	Pitch - Connector	Connector Type	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Contact Finish	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Cable Termination	Shielding	Number of Positions	Color	Length	Length
3M M3BBA-1036J	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	3 ft	914.4 mm	Gold	2	0.76 Ám	30 Áin	10	Strain Relief	IDC	Unshielded
3M M3BBA-1618R	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	1.5 ft	457.2 mm	Gold	2	0.76 Ám	30 Áin		Strain Relief	IDC	Unshielded	16	Multiple, Ribbon
3M M3BBA-1420K	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm			Gold	2	0.76 Ám	30 Áin	14	Strain Relief	IDC	Unshielded		Multiple, Twisted Pair (Flat)	508 mm	1.67 ft
3M M3BBA-3440K	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	3.34 ft	1.02 m	Gold	2	0.76 Ám	30 Áin	34	Strain Relief	IDC	Unshielded		Multiple, Twisted Pair (Flat)
3M M3BBA-5020K	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm			Gold	2	0.76 Ám	30 Áin	50	Strain Relief	IDC	Unshielded		Multiple, Twisted Pair (Flat)	508 mm	1.67 ft
3M M3BBA-2620K	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm			Gold	2	0.76 Ám	30 Áin	26	Strain Relief	IDC	Unshielded		Multiple, Twisted Pair (Flat)	508 mm	1.67 ft
3M M3BBA-4060K	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm			Gold	2	0.76 Ám	30 Áin	40	Strain Relief	IDC	Unshielded		Multiple, Twisted Pair (Flat)	1.52 m	5 '
3M M3BBA-1436J	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	3 ft	914.4 mm	Gold	2	0.76 Ám	30 Áin	14	Strain Relief	IDC	Unshielded
3M M3BBA-6040K	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	3.34 ft	1.02 m	Gold	2	0.76 Ám	30 Áin	60	Strain Relief	IDC	Unshielded		Multiple, Twisted Pair (Flat)
3M M3BBA-6020K	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm			Gold	2	0.76 Ám	30 Áin	60	Strain Relief	IDC	Unshielded		Multiple, Twisted Pair (Flat)	508 mm	1.67 ft
