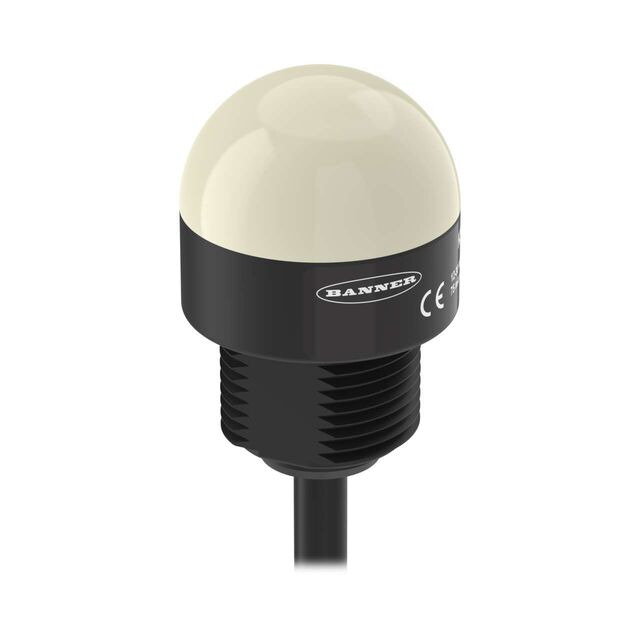

Specification	K30LBRYN

Function - Lighting	Steady
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Lamp Type	LED
Light Color	Yellow, Red, Blue
Number of Stacks	3
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-40 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

K30LBR Series

Part	Type	Termination Style	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Lamp Type	Number of Stacks	Light Color	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Max)	Operating Temperature (Min)	Function - Lighting	Function - Audible
BANNER ENGINEERING K30LBRWPQ	Complete Unit	Connector	30 VDC	10 VDC	LED	3	Blue Red White	IP67 IP69K	Dust Tight Water Resistant Waterproof	50 °C	-40 °C	Steady
BANNER ENGINEERING K30LBRYPQ	Complete Unit	Cable with Connector	30 VDC	10 VDC	LED	3	Blue Red Yellow	IP67 IP69K	Dust Tight Water Resistant Waterproof	50 °C	-40 °C	Steady	Multiple
BANNER ENGINEERING K30LBRYN	Complete Unit	Wire Leads	30 VDC	10 VDC	LED	3	Blue Red Yellow	IP67 IP69K	Dust Tight Water Resistant Waterproof	50 °C	-40 °C	Steady
